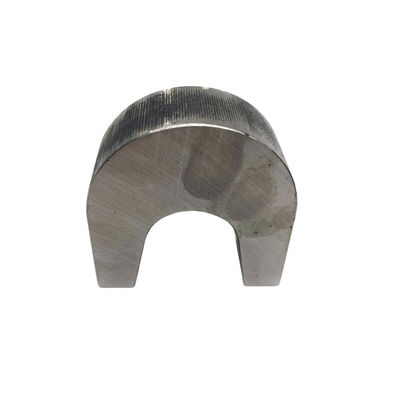

Industrial Permanent Cast Alnico Horseshoe Magnets For Microphone
  • name
  • name
  • name

Industrial Permanent Cast Alnico Horseshoe Magnets For Microphone

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 20 tons per month for SmCo magnet
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
UNMAG
Tolerance:
±0.05mm
BHmax:
1.13-9 MGOe
Max Operating Temperature:
550℃
Material:
Cast Alnico
Grade:
Alnico 5,8 Is Normally Used
Type:
Permanent Magnet
Magnetization Direction:
Axial, Radial, Multi-poles...
Application:
Generator, Microphone, Measuring Instrument
Highlight:

Industrial Alnico Horseshoe Magnets

,

Cast Alnico Horseshoe Magnets

,

Microphone Cast Alnico Magnet

Product Description
Industrial Permanent Cast Alnico Horseshoe Magnets For Microphone
Product Specifications
Tolerance ±0.05mm
BHmax 1.13-9 MGOe
Max Operating Temperature 550℃
Material Cast Alnico
Grade Alnico 5,8 Is Normally Used
Type Permanent Magnet
Magnetization Direction Axial, Radial, Multi-poles
Application Generator, Microphone, Measuring Instrument
Product Description
Alnico Permanent Horseshoe Magnets provide a cost-effective solution for permanent magnetism applications. Manufactured from cast Alnico material with a maximum operating temperature of 550℃, these magnets typically use Alnico 5 or 8 grade materials with a precision tolerance of ±0.05mm.
Key Features
  • Excellent corrosion resistance and mechanical strength
  • High resistance to demagnetization (Hcj ≥30 KA/m)
  • Precision tolerance (±0.05mm) for demanding applications
  • Wide operating temperature range up to 550℃
  • Available in multiple magnetization directions (axial, radial, multi-poles)
Technical Parameters
Grade Equivalent MMPA Class Remanence Intrinsic Coercivity Coercivity Maximum Energy Product Density (g/cm3) Reversible Temp. Coefficient (%/℃) Curie Temp. (℃) Temp. Coefficient (℃) Remark
mT Gs KA/m Oe KA/m Oe KJ/m3 MGOe
FLN8 Alnico3 520 5200 43 540 40 500 8-10 1.0-1.25 6.8 -0.02 760 450 Isotropic
Applications
These high-performance Alnico magnets are widely used in various industrial and consumer applications including:
  • Generators and motors
  • Microphones and audio equipment
  • Measuring instruments and sensors
  • Relays and switches
  • Medical and educational equipment
Reliability & Performance
UNMAG Alnico Permanent Magnets have been trusted for decades due to their superior performance and reliability. With excellent resistance to demagnetization and a maximum operating temperature of 550℃, they are ideal for applications where reliability is critical.
Customization & Shipping

Standard delivery time is 25-30 days. Products are securely packaged with tight-fitting lids to ensure safe transportation.

Manufactured in China to exacting quality standards.
