Custom Made Rare Earth Alnico 5 Magnets Multipurpose Lightweight
  • name
  • name
  • name

Custom Made Rare Earth Alnico 5 Magnets Multipurpose Lightweight

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 20 tons per month for SmCo magnet
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
UNMAG
BHmax:
1.13-9 MGOe
Hcj:
≥30 KA/m
Magnetization Direction:
Axial, Radial, Multi-poles...
Material:
Cast Alnico
Application:
Generator, Microphone, Measuring Instrument
Tolerance:
±0.05mm
Type:
Permanent Magnet
Grade:
Alnico 5,8 Is Normally Used
Highlight:

Rare Earth Alnico 5 Magnets

,

Custom Made Earth Alnico 5 Magnets

Product Description

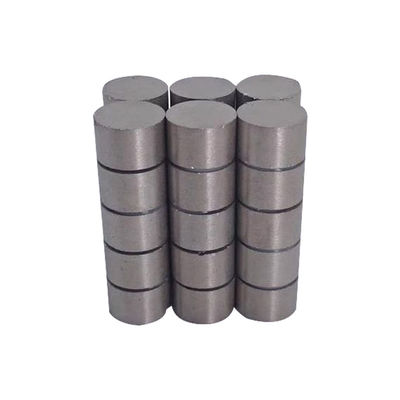

Custom Made Rare Earth Alnico 5 Magnets
Multipurpose Lightweight Permanent Magnets
Key Features
  • High performance permanent magnet material with excellent temperature stability
  • Superior corrosion resistance and thermal stability
  • Available in multiple grades including Alnico 5, 8, and 9
  • Custom shapes including rods, rings, and discs
  • Precision tolerance of ±0.05mm
Technical Specifications
Attribute Value
BHmax 1.13-9 MGOe
Hcj ≥30 KA/m
Magnetization Direction Axial, Radial, Multi-poles
Material Cast Alnico
Max Operating Temperature 450-550°C
Tolerance ±0.05mm
Performance Characteristics
Curie Temperature:
760-890℃
Resistivity:
47-54 μΩ.cm
Hardness:
520-630 HV
Density:
6.9-7.3 g/cm³
Applications
  • Generators and motors
  • Microphones and audio equipment
  • Measuring instruments and sensors
  • Aerospace components
  • Medical devices
  • Automotive systems
Why Choose Our Alnico Magnets?

Our custom-made Alnico permanent magnets offer outstanding performance with BHmax of 1.13-9 MGOe and maximum operating temperature of 550℃. Manufactured to the highest quality standards, these magnets are perfect for demanding applications requiring high temperature resistance and excellent magnetic properties.

Typical delivery time is 25-30 days for custom orders.

Request a Quote
Material Properties

Temperature Stability: Excellent performance in high heat applications (up to 550°C)

Corrosion Resistance: Superior to many other magnetic materials

Magnetic Properties: High residual induction and energy product compared to ceramic materials

Limitations: Not suited for repelling or high friction applications due to lower coercive force
