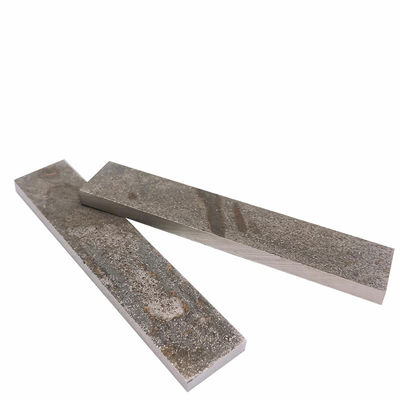

Heat Resistance Alnico 5 Bar Magnets Rare Earth Bar Magnets High Strength
  • name
  • name
  • name
  • name

Heat Resistance Alnico 5 Bar Magnets Rare Earth Bar Magnets High Strength

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 20 tons per month for SmCo magnet
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
UNMAG
Magnetization Direction:
Axial, Radial, Multi-poles...
Max Operating Temperature:
550℃
Material:
Cast Alnico
Hcj:
≥30 KA/m
BHmax:
1.13-9 MGOe
Grade:
Alnico 5,8 Is Normally Used
Tolerance:
±0.05mm
Application:
Generator, Microphone, Measuring Instrument
Highlight:

Heat Resistance Alnico 5 Bar Magnets

,

Heat Resistance Rare Earth Bar Magnets

Product Description
Heat Resistance Alnico 5 Bar Magnets - Rare Earth Bar Magnets with High Strength
Key Specifications
Attribute Value
Magnetization Direction Axial, Radial, Multi-poles
Max Operating Temperature 550℃
Material Cast Alnico
Hcj ≥30 KA/m
BHmax 1.13-9 MGOe
Grade Alnico 5,8 Is Normally Used
Tolerance ±0.05mm
Application Generator, Microphone, Measuring Instrument
Product Overview
Alnico magnets are permanent magnets composed of an aluminum-nickel-cobalt alloy, offering high magnetic properties, temperature stability, and moderate coercive force. Our cast Alnico magnets are formed through melting and molding processes, available in various grades with magnetization directions including axial, radial, and multi-poles.
Technical Features
  • Excellent temperature stability for high heat applications (450-550℃)
  • High residual induction and energy product compared to ceramic materials
  • Low coercive force (more subject to demagnetization than ceramic/rare earth magnets)
  • Hard and brittle material - not suitable for conventional machining
  • Most common grades: Alnico 5 and 8
  • Not recommended for repelling or high friction applications
Physical Properties
Parameter Value
Curie Temperature 760 ~ 890℃
Max Operating Temperature 450 ~ 550℃
Resistivity 47 ~ 54 μΩ·cm
Hardness 520 ~ 630 HV
Density 6.9 ~ 7.3 g/cm³
Relative Recoil Permeability 1.7 ~ 4.7 μrec
Saturation Field Strength 2.7 ~ 6.3 kOe / 215~500 kA/m
Temperature Coefficient of Br -0.025 ~ -0.02%/℃
Temperature Coefficient of iHc +0.01 ~ +0.03 %/℃
Applications
Ideal for applications requiring high temperature resistance, strong magnetic performance, and long service life. Commonly used in:
  • Generators
  • Microphones
  • Measuring instruments
Customization & Shipping
Brand: UNMAG
Origin: China
Delivery Time: 25-30 days
Packaging: Wrapped in protective plastic/cloth with clear labeling
Shipping: Available via air freight or ocean freight
Our Alnico magnets deliver exceptional performance with maximum operating temperatures up to 550℃ and BHmax values ranging from 1.13 to 9 MGOe. Available in various grades (LNG37, Alnico5, Alnico8, Alnico9) with multiple magnetization direction options.
