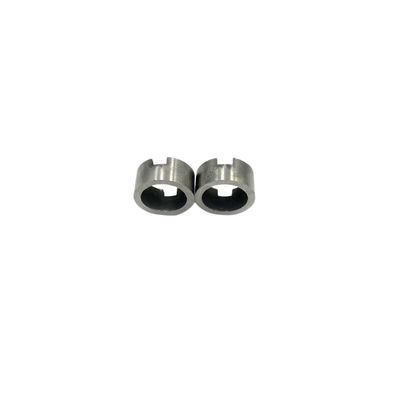

Reliable Customized Alnico Pickup Magnets Abrasion Resistance
  • name
  • name
  • name
  • name

Reliable Customized Alnico Pickup Magnets Abrasion Resistance

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 20 tons per month for SmCo magnet
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
UNMAG
Application:
Generator, Microphone, Measuring Instrument
Shape:
Customized
Tolerance:
±0.05mm
Hcj:
≥30 KA/m
Magnetization Direction:
Axial, Radial, Multi-poles..
Material:
Alnico
BHmax:
1.13-9 MGOe
Type:
Permanent Magnet
Highlight:

Alnico Pickup Magnets Abrasion Resistance

,

Customized Alnico Pickup Magnets

Product Description
Reliable Customized Alnico Pickup Magnets with Abrasion Resistance
Product Specifications
Attribute Value
Application Generator, Microphone, Measuring Instrument
Shape Customized
Tolerance ±0.05mm
Hcj ≥30 KA/m
Magnetization Direction Axial, Radial, Multi-poles
Material Alnico
BHmax 1.13-9 MGOe
Type Permanent Magnet
Product Overview

Alnico Permanent Magnet is a high-performance permanent magnet made from cast Alnico materials including Alnico 5, Alnico 8, and LNG37. With a maximum operating temperature of 550℃, these magnets offer exceptional resistance to demagnetization and are ideal for demanding applications in generators, microphones, and measuring instruments.

Key Features
  • Maximum operating temperature of 550℃
  • Available in axial, radial, and multi-pole magnetization directions
  • Customizable sizes and shapes with ±0.05mm tolerance
  • Excellent temperature stability for high heat applications
  • High residual induction and energy product
  • Available in Alnico 5 and Alnico 8 grades
Technical Parameters
Parameter Name Value
Curie Temperature 760 ~ 890℃
Max. Operating Temperature 450 ~ 550℃
Resistivity 47 ~ 54 μΩ.cm
Hardness 520 ~ 630 HV
Density 6.9 ~ 7.3 g/cm³
Relative Recoil Permeability 1.7 ~ 4.7 μrec
Saturation Field Strength 2.7 ~ 6.3 kOe / 215~500 kA/m
Temperature Coefficient of Br -0.025 ~ -0.02%/℃
Temperature Coefficient of iHc +0.01 ~ +0.03 %/℃
Customization Options

Our UNMAG brand Alnico Permanent Magnets offer complete customization:

  • Custom sizes and shapes to meet specific requirements
  • Multiple magnetization directions (axial, radial, multi-poles)
  • Precision tolerance of ±0.05mm
  • Available in Alnico5, Alnico8, LNG37, and LNG42 alloys
Applications

These high-performance magnets are suitable for various industries including:

  • Automotive systems
  • Electrical equipment
  • Electronics
  • Generators and motors
  • Microphones and audio equipment
  • Precision measuring instruments
Packaging & Shipping
  • Stored in dry, dust-free environments
  • Shipped with protective packaging (foam, bubble wrap)
  • Kept away from electrical equipment during transport
  • Secured against shock and vibration
Technical Support

Our experienced team provides comprehensive support including:

  • Installation and maintenance guidance
  • Custom design and engineering solutions
  • Troubleshooting and diagnostics
  • Application-specific recommendations
Contact us today for more information about our Alnico Permanent Magnet solutions.
