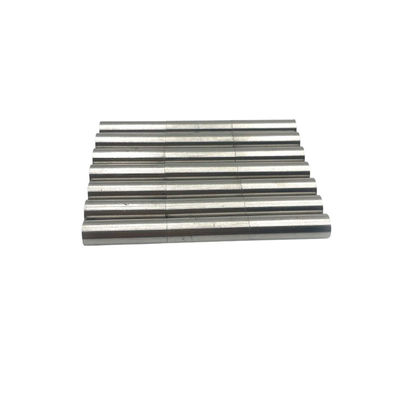

Multi Poles Cast Alnico Rod Magnets Customized Size Temperature Resistance
  • name
  • name
  • name
  • name

Multi Poles Cast Alnico Rod Magnets Customized Size Temperature Resistance

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 20 tons per month for SmCo magnet
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
UNMAG
Magnetization Direction:
Axial, Radial, Multi-poles..
Size:
Customized
Tolerance:
±0.05mm
BHmax:
1.13-9 MGOe
Application:
Generator, Microphone, Measuring Instrument
Material:
Alnico
Type:
Permanent Magnet
Max Operating Temperature:
550℃
Highlight:

Multi Pole alnico 5 rod magnets

,

Alnico Rod Magnets Customized Size

,

temperature Resistance Cast Alnico Magnets

Product Description
Multi Poles Cast Alnico Rod Magnets - Customized Size & Temperature Resistance
Product Overview
Cast Alnico Magnets are permanent magnets composed of aluminum, nickel, cobalt, copper, iron, and other elements. These high-performance magnets offer exceptional strength and can withstand temperatures up to 550℃. Available in customized sizes and shapes, they feature a Hcj of ≥30 KA/m and a BHmax of 1.13-9 MGOe, making them ideal for diverse industrial applications.
Key Specifications
Material:
Alnico
Type:
Permanent Magnet
Magnetization Direction:
Axial, Radial, Multi-poles
Size:
Customized
Tolerance:
±0.05mm
Max Operating Temperature:
550℃
BHmax:
1.13-9 MGOe
Technical Parameters
Parameter Name Value
Curie Temperature 760 ~ 890℃
Max. Operating Temperature 450 ~ 550℃
Resistivity 47 ~ 54 μΩ.cm
Hardness 520 ~ 630 HV
Density 6.9 ~ 7.3 g/cm³
Relative Recoil Permeability 1.7 ~ 4.7 μrec
Saturation Field Strength 2.7 ~ 6.3 kOe / 215~500 kA/m
Temperature Coefficient of Br -0.025 ~ -0.02%/℃
Temperature Coefficient of iHc +0.01 ~ +0.03 %/℃
Key Features
  • High coercivity and reliable performance
  • Excellent temperature resistance up to 550℃
  • Superior magnetic properties including high remanence
  • Low temperature coefficient of magnetic induction
  • Corrosion-resistant and durable construction
  • Customizable sizes, shapes and magnetization directions
Applications
Our Alnico permanent magnets are widely used in various industries including:
  • Automotive Industry: Ignition systems, brakes, suspensions, engine components
  • Electrical & Electronic Industry: Motors, switchgear, relays, transformers
  • Industrial Instruments: Magnetic level gauges, flowmeters, sensors
  • Other Applications: Medical instruments, magnetic separators, energy meters, loudspeakers
Customization Options
We offer fully customized Alnico permanent magnets with various grades including LNG37, Alnico8 and Alnico9. Our customization services include:
  • Custom sizes and shapes
  • Precision tolerance (±0.05mm)
  • Multiple magnetization directions (Axial, Radial, Multi-poles)
  • Specialized applications for generators, microphones, measuring instruments
Technical Support & Services
Our team of technical experts provides comprehensive support for selection, installation, and operation of Alnico permanent magnets. Services include:
  • Customized application solutions
  • Training on magnet properties and design
  • Material selection assistance
  • Installation guidance
Packaging & Shipping
All Alnico Permanent Magnets are carefully packaged in sealed plastic bags, boxes, or cartons to ensure safe transit. Shipping options include:
  • Small orders: USPS, FedEx, or UPS
  • Large orders: Ocean freight or air freight
  • All packages are tracked and insured
