Radial Magnetized Alnico Permanent Magnet LNG37 For Generator Use
  • name
  • name
  • name

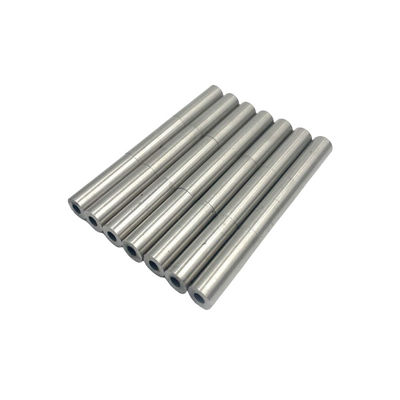

Radial Magnetized Alnico Permanent Magnet LNG37 For Generator Use

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 20 tons per month for SmCo magnet
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
UNMAG
Hcj:
≥30 KA/m
Type:
Permanent Magnet
Magnetization Direction:
Axial, Radial, Multi-poles..
Tolerance:
±0.05mm
Size:
Customized
Material:
Alnico
Max Operating Temperature:
550℃
BHmax:
1.13-9 MGOe
Highlight:

Radial Alnico Permanent Magnet

,

Alnico Permanent Magnet LNG37

Product Description
Radial Magnetized Alnico Permanent Magnet LNG37 For Generator Use
Product Specifications
Attribute Value
Hcj ≥30 KA/m
Type Permanent Magnet
Magnetization Direction Axial, Radial, Multi-poles
Tolerance ±0.05mm
Size Customized
Material Alnico
Max Operating Temperature 550℃
BHmax 1.13-9 MGOe
Product Overview
The Alnico Permanent Magnet is a cast magnet made from aluminum, nickel, cobalt, and iron alloy. Designed for generator applications, it offers superior magnetic properties with excellent temperature stability and corrosion resistance.
Key Features
  • High temperature resistance up to 550℃
  • Excellent corrosion resistance
  • Strong magnetic field performance
  • Customizable in size, shape, and material
  • Available in Alnico 5, Alnico 8, and Alnico 5 Magnets
Technical Parameters
Parameter Name Value
Cruie Temperature 760 ~ 890℃
Max. Operating Temperature 450 ~ 550℃
Resistivity 47 ~ 54 μ Ω.cm
Hardness 520 ~ 630 HV
Density 6.9 ~ 7.3 g/cm³
Relative Recoil Permeability 1.7 ~ 4.7 μrec
Saturation Field Strength 2.7 ~ 6.3 kOe / 215~500 kA/m
Temperature Coefficient of Br -0.025 ~ -0.02%/℃
Temperature Coefficient of iHc +0.01 ~ +0.03 %/℃
Applications
Our Alnico Permanent Magnets are widely used in various industrial applications including:
  • Generators
  • Microphones
  • Measuring instruments
  • Other precision equipment
Customization Options
Brand Name: UNMAG
Place of Origin: China
Material: LNG37, Cast Alnico Magnet
Hcj: ≥30 KA/m
BHmax: 1.13-9 MGOe
Max Operating Temperature: 550℃
Shape: Customized to requirements
Support & Services
Our team provides comprehensive technical support including product selection advice, installation guidance, maintenance, and troubleshooting. We offer product testing in our advanced laboratory and develop custom solutions to meet specific requirements.
Packaging & Shipping
Magnets are securely packaged in protective materials (cardboard boxes, plastic bags, etc.) according to their size and shape. We use reliable courier services with tracking to ensure safe and timely delivery.
