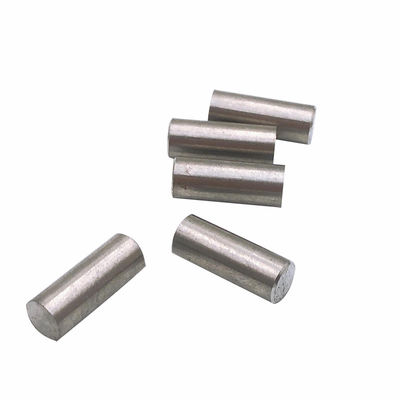

OEM Alnico Permanent Magnet Cylinder Custom Size Alnico Rod Magnet
  • name
  • name
  • name
  • name

OEM Alnico Permanent Magnet Cylinder Custom Size Alnico Rod Magnet

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 20 tons per month for SmCo magnet
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
UNMAG
Size:
Customized
Magnetization Direction:
Axial, Radial, Multi-poles..
BHmax:
1.13-9 MGOe
Application:
Generator, Microphone, Measuring Instrument
Shape:
Customized
Tolerance:
±0.05mm
Material:
Alnico
Max Operating Temperature:
550℃
Highlight:

Cylinder Alnico Rod Magnet

,

OEM Alnico Rod Magnet

,

Alnico Permanent Magnet Cylinder

Product Description
OEM Alnico Permanent Magnet Cylinder Custom Size Alnico Rod Magnet
Product Specifications
Attribute Value
Size Customized
Magnetization Direction Axial, Radial, Multi-poles
BHmax 1.13-9 MGOe
Application Generator, Microphone, Measuring Instrument
Shape Customized
Tolerance ±0.05mm
Material Alnico
Max Operating Temperature 550℃
Product Overview

Alnico Permanent Magnets are high-performance magnets made from aluminum, nickel, and cobalt alloys, offering exceptional durability and magnetic properties. These magnets maintain their magnetic strength even at extreme temperatures up to 550℃, making them ideal for demanding industrial applications.

Key Features:
  • Available in various grades including Alnico9, Alnico8, Alnico5, and Alnico2
  • High coercive force (Hcj) ≥30 KA/m
  • Precision tolerance of ±0.05mm
  • Excellent temperature stability (450-550℃ operating range)
  • Corrosion resistant and durable
Technical Parameters
Parameter Name Value
Curie Temperature 760 ~ 890℃
Max. Operating Temperature 450 ~ 550℃
Resistivity 47 ~ 54 μΩ.cm
Hardness 520 ~ 630 HV
Density 6.9 ~ 7.3 g/cm³
Relative Recoil Permeability 1.7 ~ 4.7 μrec
Saturation Field Strength 2.7 ~ 6.3 kOe / 215~500 kA/m
Temperature Coefficient of Br -0.025 ~ -0.02%/℃
Temperature Coefficient of iHc +0.01 ~ +0.03 %/℃
Applications

Our Alnico Permanent Magnets are widely used in various industrial applications:

  • Alnico9: Industrial motors, instruments, meters, sensors, and generators
  • Alnico Rod Magnet: Linear motion devices and linear motors
  • Alnico Cylinder Magnet: Audio speakers and motors
  • Alnico Block Magnet: Instruments, meters, relays, and switches
Customization Options

We offer complete customization of Alnico Permanent Magnets to meet your specific requirements:

  • Custom shapes and sizes
  • Multiple magnetization directions (axial, radial, multi-pole)
  • Various Alnico grades available
  • Precision manufacturing with ±0.05mm tolerance
Packaging & Shipping

All magnets are securely packaged to prevent damage during transit:

  • Small magnets: Bubble wrap and cardboard boxes
  • Large magnets: Wooden crates or pallets
  • Multiple shipping options available (ground, air, express)
  • International shipping service
Technical Support

Our expert team provides comprehensive support for all Alnico Permanent Magnet products:

  • Installation and setup assistance
  • Troubleshooting support
  • Custom product development

For technical inquiries, please contact: support@example.com
