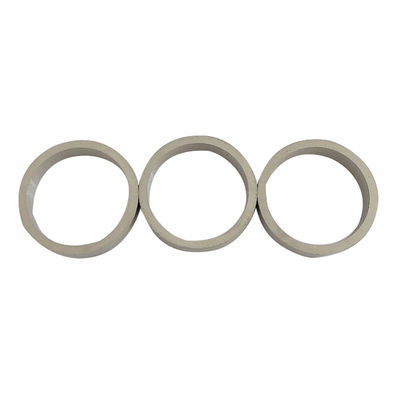

Alnico5 Alnico2 Rare Earth Ring Magnets Radial Magnetization
  • name
  • name
  • name

Alnico5 Alnico2 Rare Earth Ring Magnets Radial Magnetization

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 20 tons per month for SmCo magnet
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
UNMAG
Tolerance:
±0.05mm
Size:
Customized
BHmax:
1.13-9 MGOe
Max Operating Temperature:
550℃
Magnetization Direction:
Axial, Radial, Multi-poles..
Type:
Permanent Magnet
Material:
Alnico
Shape:
Customized
Highlight:

Alnico2 Rare Earth Ring Magnets

,

Rare Earth Ring Magnets Radial

Product Description
Alnico5 Alnico2 Rare Earth Ring Magnets with Radial Magnetization
Product Specifications
Attribute Value
Tolerance ±0.05mm
Size Customized
BHmax 1.13-9 MGOe
Max Operating Temperature 550℃
Magnetization Direction Axial, Radial, Multi-poles
Type Permanent Magnet
Material Alnico
Shape Customized
Product Overview

Alnico permanent magnets are high-performance motor magnets made from an alloy of aluminum, nickel, and cobalt (AlNiCo). These magnets offer exceptional magnetic properties, high energy output, and excellent temperature stability, making them ideal for demanding applications in generators, microphones, measuring instruments, and other precision equipment.

Key Features
  • Excellent resistance to demagnetization
  • Superior temperature stability (up to 550℃)
  • High energy product (BHmax 1.13-9 MGOe)
  • Good corrosion resistance
  • Stable and reliable magnetic properties
  • Available in Alnico5 and Alnico2 grades
  • Customizable shapes and magnetization directions
Technical Parameters
Parameter Value
Curie Temperature 760-890℃
Max Operating Temperature 450-550℃
Resistivity 47-54 μΩ·cm
Hardness 520-630 HV
Density 6.9-7.3 g/cm³
Relative Recoil Permeability 1.7-4.7 μrec
Saturation Field Strength 2.7-6.3 kOe / 215-500 kA/m
Temperature Coefficient of Br -0.025 to -0.02%/℃
Temperature Coefficient of iHc +0.01 to +0.03%/℃
Applications

Our Alnico permanent magnets are widely used in:

  • Generators and motors
  • Precision measuring instruments
  • Microphones and audio equipment
  • Sensors and actuators
  • Industrial automation systems
Customization Options

We offer complete customization of our Alnico permanent magnets to meet your specific requirements:

  • Custom shapes (rings, discs, rods, etc.)
  • Multiple magnetization directions (axial, radial, multi-pole)
  • Various Alnico grades (Alnico5, Alnico2, Alnico8)
  • Precision tolerances (±0.05mm)
Support & Services

Our technical support team provides comprehensive assistance for all Alnico magnet applications:

  • Product selection guidance
  • Application engineering support
  • Troubleshooting assistance
  • Technical documentation
Packaging & Shipping

All Alnico magnets are carefully packaged to ensure safe delivery:

  • Shock-resistant packaging materials
  • Custom packaging solutions for bulk orders
  • Clear labeling with product specifications
  • Handling instructions for safe transport
Tags:

alnico permanent magnet,

permanent magnet alnico,

alnico rod magnets
