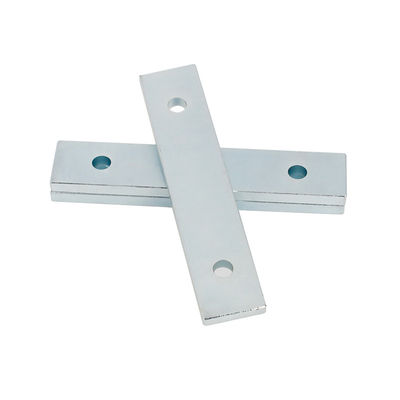

N35-N52 Sintered Neodymium Magnet Iron Block With Zinc Coating
  • name
  • name
  • name
  • name

N35-N52 Sintered Neodymium Magnet Iron Block With Zinc Coating

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 100 tons per month for NdFeB magnet
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
UNMAG
Certification
ISO9001, IATF16949, ISO14001
Shape:
Block,Arc,Ring,Customized Shape Magnet
Working Temperature:
80~220°C
Grade:
N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
Coating:
Nickel,NiCuNi,Zinc,Epoxy Etc
Application:
New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors
Magnetic Orientation:
As Customization
Material:
Neodymium Iron Boron
Highlight:

Sintered Neodymium Magnet N35

,

Zinc Coating Sintered Neodymium Magnet

,

Zinc Coating Neodymium Block Magnet

Product Description
N35-N52 Sintered Neodymium Magnet Iron Block With Zinc Coating
Product Overview

Sintered Neodymium Magnet is a high-performance permanent magnet made from rare earth materials using powder metallurgy. These magnets offer superior magnetic properties including high coercivity, energy product, and remanence, making them ideal for demanding industrial applications.

Key Specifications
Attribute Value
Shape Block, Arc, Ring, Customized Shape Magnet
Working Temperature 80~220°C
Grade N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
Coating Nickel, NiCuNi, Zinc, Epoxy Etc
Application New Energy Cars, Wind Power Generation, Servo Motors, Traction Motors
Magnetic Orientation As Customization
Material Neodymium Iron Boron
Physical Properties
Parameter Name Parameter Values Unit
Curie Temperature 310～380 ℃
Relative Recoil Permeability 1.02～1.05
Reversible Temperature Coefficient of Br (20~100℃) -0.09～-0.13 %/℃
Density 7.50～7.70 g/cm3
Vickers Hardness 550～700
Tensile Strength ≥80 MPa
Compressive Strength 800 ~1050 MPa
Temperature Performance by Grade
Grade Working Temp (℃)
NSeries (N35~N52) ≤80
MSeries (38M~50M) ≤100
HSeries (35H~48H) ≤120
SHSeries (33SH~48SH) ≤150
UHSeries (30UH~40UH) ≤180
EHSeries (30EH~38EH) ≤200
Manufacturing Process
  1. Mixing the ingredients
  2. Dissolving the mixture at high temperature to prepare an alloy
  3. Turning the alloy into fine powder
  4. Molding in a magnetic field to align magnetization directions
  5. Sintering at ~1,100℃ followed by heat treatment at ~600℃
  6. Processing into final product shape
  7. Surface treatment for rustproofing
  8. Magnetization by applying a magnetic field
Applications

Our UNMAG Sintered Neodymium Magnets are widely used in:

  • New energy cars
  • Wind power generation
  • Servo motors
  • Traction motors
Certifications & Packaging

Our magnets meet ISO9001, IATF16949, and ISO14001 standards. They are carefully packaged in bubble wrap and cardboard boxes with "Fragile" labeling for safe shipping. Standard delivery time is 20-25 days.

Customization Options

We offer complete customization services including:

  • Various shapes (blocks, rings, arcs, custom designs)
  • Multiple coating options (Nickel, NiCuNi, Zinc, Epoxy)
  • Custom magnetic orientations
  • Wide range of grades to suit different temperature requirements
Tags:

sintered ndfeb magnets,

sintered neodymium iron boron,

sintered rare earth magnets
