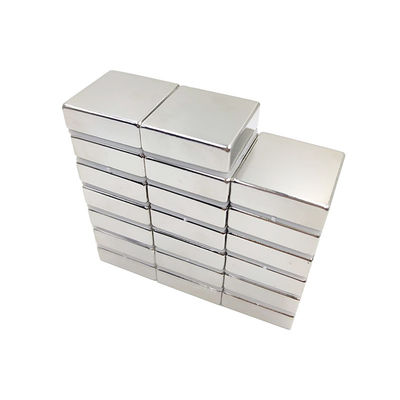

Nickel Coating Sintered Neodymium Magnet Rectangle Neodymium Magnet Multi Polar

MOQ:	100pcs
Price:	As negotiation
Standard Packaging:	cartons,pallets
Delivery Period:	20-25days
Payment Method:	T/T L/C
Supply Capacity:	100 tons per month for NdFeB magnet

Detail Information

Product Description

Detail Information

Certification

ISO9001

Product Name:

Magnetic Square Blocks

Grade:

N35-N52

Shape:

Sintered

Pull Force:

High

Coating:

Nickel

Magnetic Orientation:

Multi-polar

Magnetic Performance:

Stable

Size:

Customized

Highlight:

Rectangle Neodymium Magnet Multi Polar

Nickel Coating Sintered Neodymium Magnet

Nickel Coating Rectangle Neodymium Magnet

Product Description

Nickel Coating Sintered Neodymium Magnet Rectangle Neodymium Magnet Multi Polar

Product Specifications

Attribute	Value
Product Name	magnetic square blocks
Grade	N35-N52
Shape	Sintered
Pull Force	High
Coating	Nickel
Magnetic Orientation	Multi-polar
Magnetic Performance	Stable
Size	Customized

Product Overview

Sintered Neodymium Magnets are made of Neodymium-Iron-Boron (NdFeB) material, making them among the strongest permanent magnets available. Produced through a sintering process that compresses and heats the material in a mold, these magnets offer uniform structure and stable magnetic performance.

Key Features

High magnetic field strength and pull force

Nickel coating for corrosion resistance and smooth finish

Multi-polar magnetic orientation for precise field control

Customizable sizes and shapes to meet specific requirements

ISO9001 certified for quality assurance

Physical Properties

Parameter Name	Parameter Values	Unit
Curie Temperature	310～380	℃
Relative Recoil Permeability	1.02～1.05
Reversible Temperature Coefficient of Br (20~100℃)	-0.09～-0.13	%/℃
Reversible Temperature Coefficient of Hcj (20~100℃)	-0.4～-0.7	%/℃
Density	7.50～7.70	g/cm3
Vickers Hardness	550～700
Compressive Strength	800 ~1050	MPa
Electric Resistivity	150	μΩ·cm

Tolerance Control

Name	Dimension(mm)	Tolerance(mm)
Wall thickness	T≤10	±0.04
	10<T≤30	±0.05
	30<T≤50	±0.06
Length	L≤10	±0.04
	10<L≤30	±0.05
	30<T≤50	±0.05
	L>50	±0.08

Available Sizes

Maximum dimensions: L≤200mm, W≤100mm, Thickness: 1.5~50mm, Height: 3~60mm

Applications

These high-performance magnets are widely used in various industries including:

Industrial manufacturing equipment

Medical devices and instruments

Consumer electronics

Motor assemblies and electrical sensors

Automotive components

Renewable energy systems

Customization Services

We offer comprehensive customization services for sintered neodymium magnets, including:

Size and shape customization

Various coating options (see table below)

Technical support and consultation

ISO9001 certified production

Coating Options

Coating Material	Color	Properties	Thickness
Nickel-Copper-Nickel	White/Black	Light and stable, suitable for corrosive environments	15-30μm
Epoxy	Black/Gray	Lustrous layer with insulation properties	≥15μm
Al+Epoxy	Black	Excellent corrosion resistance for hostile environments	15-35μm

Technical Support: Our expert team provides 24/7 technical assistance, product training, installation guidance, and troubleshooting for all sintered neodymium magnet applications.

Packaging & Shipping

Magnets are securely packaged in heavy-duty foam-lined boxes to prevent movement during transit. We offer multiple shipping options including FedEx and UPS, with customizable shipping methods available.
