Traction Motors Sintered Neodymium Iron Boron Magnets Antirust
  • name
  • name
  • name
  • name
  • name

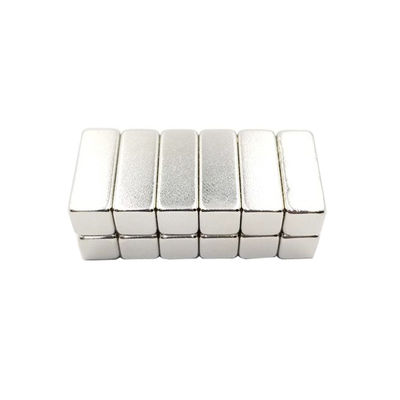

Traction Motors Sintered Neodymium Iron Boron Magnets Antirust

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 100 tons per month for NdFeB magnet
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
UNMAG
Certification
ISO9001, IATF16949, ISO14001
Coating:
Nickel,NiCuNi,Zinc,Epoxy Etc
Material:
Neodymium Iron Boron
Application:
New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors
Magnetic Orientation:
As Customization
Shape:
Block,Arc,Ring,Customized Shape Magnet
Grade:
N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
Working Temperature:
80~220°C
Highlight:

Sintered Neodymium Iron Boron Magnets

,

Neodymium Iron Boron Magnets Antirust

,

Antirust sintered rare earth magnets

Product Description
Traction Motors Sintered Neodymium Iron Boron Magnets Antirust
Product Overview

Sintered Neodymium Magnet is a rare earth magnet made of neodymium iron boron materials through sintering process. It offers high coercivity and energy product, making it ideal for various industrial applications. Customizable in magnetic orientation, certification, coating, and grade, these magnets are certified by ISO9001, IATF16949, and ISO14001.

Key Specifications
Material:
Neodymium Iron Boron
Coating:
Nickel, NiCuNi, Zinc, Epoxy, etc.
Grade Range:
N35-N52, 35M-50M, 35H-48H, 30SH-45SH
Working Temperature:
80~220°C
Shapes:
Block, Arc, Ring, Customized
Applications
  • New Energy Cars
  • Wind Power Generation
  • Servo Motors
  • Traction Motors
  • Industrial Automation
  • Medical Equipment
Key Advantages
  • High magnetic strength
  • Excellent temperature stability
  • Superior corrosion resistance
  • Cost-effective solution
  • Customizable properties
Magnetic Properties
Grade Remanence (Br) Coercivity (HcB) Intrinsic Coercivity (HcJ) Max Energy Product Working Temp
N35 11.7-12.2 KGs ≥10.9 KOe ≥12 KOe 33-36 MGOe ≤80°C
N52 14.3-14.8 KGs ≥10.0 KOe ≥11 KOe 50-53 MGOe ≤60°C
35M 11.7-12.2 KGs ≥10.9 KOe ≥14 KOe 33-36 MGOe ≤100°C
48H 13.7-14.3 KGs ≥12.5 KOe ≥17 KOe 46-49 MGOe ≤120°C
Coating Properties
Coating Material Properties Application Environment Thickness
Zinc Compact, Stable, Homogeneous Reasonable anticorrosion capability 6-12μm
Nickel-Copper-Nickel Light and Stable Higher corrosive environment 15-30μm
Epoxy Layer with luster, insurability Higher corrosive environment ≥15μm
Al+Epoxy Layer with luster Hostile environment (salt spray resistance>650hr) 15-35μm
Customization Options

We offer comprehensive customization services including:

  • Custom shapes (block, arc, ring, or unique designs)
  • Various coating options for different environments
  • Specific working temperature requirements
  • Tailored magnetic properties
Packaging & Shipping

To ensure safe delivery of these powerful magnets:

  • Each magnet individually wrapped in non-metallic material
  • Protected in cardboard, plastic, or bubble wrap
  • Clearly labeled as "FRAGILE"
  • Shipped via reputable carrier with tracking
  • Optional insurance available
Brand Information
Brand Name:
UNMAG
Origin:
China
Packaging:
Carton Box
Delivery Time:
20-25 days
Tags:

sintered ndfeb magnets,

sintered neodymium iron boron,

sintered rare earth magnets
