Stable Performance Sintered Neodymium NdFeB Magnets N35-N52 Rare Earth Magnets

MOQ:	100pcs
Price:	As negotiation
Standard Packaging:	cartons,pallets
Delivery Period:	20-25days
Payment Method:	T/T L/C
Supply Capacity:	100 tons per month for NdFeB magnet

Detail Information

Product Description

Detail Information

Certification

ISO9001

Magnetic Performance:

Stable

Corrosion Resistance:

High

Temperature Resistance:

High

Grade:

N35-N52

Pull Force:

High

Application:

Widely Used

Highlight:

Sintered Neodymium NdFeB Magnets

Sintered N52 Rare Earth Magnets

Neodymium NdFeB Magnets N35

Product Description

Stable Performance Sintered Neodymium NdFeB Magnets N35-N52 Rare Earth Magnets

Magnetic Performance	Stable
Corrosion Resistance	High
Temperature Resistance	High
Grade	N35-N52
Pull Force	High
Application	Widely Used

Product Description

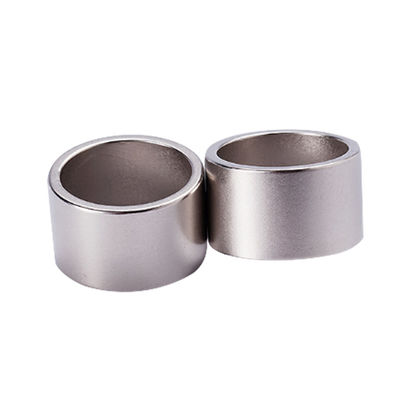

Neodymium Iron Boron (NdFeB) or Neodymium magnets are extremely strong for their size. Available in various shapes including rings, blocks, discs, and custom configurations.

To prevent oxidation, these magnets are typically finished with protective zinc, nickel, or epoxy coatings.

Manufacturing process involves melting the elements together, milling into powder, dry-pressing in a magnetic field, sintering, grinding to dimension, magnetizing, and testing. Classified as "rare earth" magnets due to their neodymium content from the lanthanides group in the Periodic Table.

Physical Properties of Sintered Neodymium Magnet

Parameter Name	Parameter Values	Unit
Curie Temperature	310～380	℃
Relative Recoil Permeability	1.02～1.05
Reversible Temperature Coefficient of Br (20~100℃)	-0.09～-0.13	%/℃
Reversible Temperature Coefficient of Hcj (20~100℃)	-0.4～-0.7	%/℃
Density	7.50～7.70	g/cm3
Vickers Hardness	550～700
Bending Strength	-0.09～-0.13	MPa
Tensile Strength	≥80	MPa
Compressive Strength	800 ~1050	MPa
Electric Resistivity	150	μΩ*cm
Thermal Conductivity	8～10	W/(M*℃)
Coefficient of Thermal Expansion (Parallel)	5	10-6/K
Coefficient of Thermal Expansion (Vertical)	-1.5	10-6/K
Young's Modulus	150～200	GPa
Specific Heat (20℃～320℃)	3.0～4.6	J/(g*k)
Weight Loss (low weight loss products)	≤2	mg/cm2

Magnetic Properties of Sintered Neodymium Magnet

Grade	Remanence (Br)	Coercivity (HcB)	Intrinsic Coercivity (HcJ)	Max Energy Product (BH)max	Working Temp (Tw)
	KGs \| T	KOe \| KA/m	KOe \| KA/m	MGOe \| KJ/m³	℃
N35	11.7-12.2 \| 1.17-1.22	≥10.9 \| ≥868	≥12 \| ≥955	33-36 \| 263-287	≤80
N38	12.2-12.5 \| 1.22-1.25	≥11.3 \| ≥899	≥12 \| ≥955	36-39 \| 287-310	≤80
N40	12.5-12.8 \| 1.25-1.28	≥11.4 \| ≥907	≥12 \| ≥955	38-41 \| 302-326	≤80
N42	12.8-13.2 \| 1.28-1.32	≥11.5 \| ≥915	≥12 \| ≥955	40-43 \| 318-342	≤80
N45	13.2-13.8 \| 1.32-1.38	≥11.6 \| ≥923	≥12 \| ≥955	43-46 \| 342-366	≤80
N48	13.8-14.2 \| 1.38-1.42	≥11.6 \| ≥923	≥12 \| ≥955	46-49 \| 366-390	≤80
N50	14.0-14.5 \| 1.40-1.45	≥10.0 \| ≥796	≥11 \| ≥876	48-51 \| 382-406	≤60
N52	14.3-14.8 \| 1.43-1.48	≥10.0 \| ≥796	≥11 \| ≥876	50-53 \| 398-422	≤60
