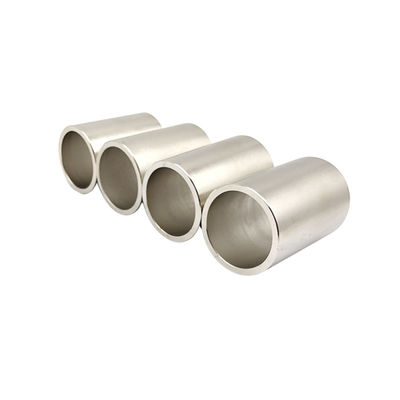

ISO Sintered Neodymium Magnet Ring Shape Permanent Nickel Coatings
  • name
  • name
  • name
  • name
  • name

ISO Sintered Neodymium Magnet Ring Shape Permanent Nickel Coatings

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 100 tons per month for NdFeB magnet
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
UNMAG
Certification
ISO9001, IATF16949, ISO14001
Material:
Neodymium Iron Boron
Magnetic Orientation:
As Customization
Shape:
Block,Arc,Ring,Customized Shape Magnet
Grade:
N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
Coating:
Nickel,NiCuNi,Zinc,Epoxy Etc
Application:
New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors
Working Temperature:
80~220°C
Highlight:

ISO Sintered Neodymium Magnet

,

Permanent Sintered Neodymium Magnet

,

ISO Permanent Neodymium Magnet

Product Description
ISO Sintered Neodymium Magnet Ring Shape Permanent Nickel Coatings
Product Overview

ISO9001 certified sintered neodymium magnet with customized magnetic orientation. These advanced neodymium-iron-boron (NdFeB) magnets represent some of the strongest permanent magnets available, featuring excellent magnetic properties and high working temperatures.

Key Specifications
Attribute Value
Material Neodymium Iron Boron
Magnetic Orientation As Customization
Shape Block, Arc, Ring, Customized Shape
Grade N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
Coating Nickel, NiCuNi, Zinc, Epoxy etc
Application New Energy Cars, Wind Power Generation, Servo Motors, Traction Motors
Working Temperature 80~220°C
Physical Properties
Parameter Name Parameter Values Unit
Curie Temperature 310～380 ℃
Relative Recoil Permeability 1.02～1.05
Reversible Temperature Coefficient of Br (20~100℃) -0.09～-0.13 %/℃
Density 7.50～7.70 g/cm3
Vickers Hardness 550～700
Compressive Strength 800 ~1050 MPa
Electric Resistivity 150 μΩ·cm
Technical Parameters
Property Description
Certification ISO9001, IATF16949, ISO14001
Available Size L≤200mm, W≤100mm, T: 1.5~50mm, H3~60mm
Delivery Time 20-25 days
Packaging Sturdy carton box with waterproof protection
Tolerance Control
Name Dimension(mm) Tolerance(mm)
Wall thickness T≤10 ±0.04
10<T≤30 ±0.05
30<T≤50 ±0.06
Length L≤10 ±0.04
10<L≤30 ±0.05
L>50 ±0.08
Manufacturing Process

UNMAG sintered neodymium magnets are manufactured through powder metallurgy magnetization technology, ensuring excellent magnetic properties and consistent quality.

Applications

Ideal for high-performance applications including new energy vehicles, wind power generation systems, servo motors, and traction motors.

Packaging & Shipping

All magnets are securely packed in sturdy carton boxes with waterproof protection. We use reliable courier services with full tracking capabilities to ensure safe delivery within 20-25 days.

Tags:

sintered ndfeb magnets,

sintered neodymium iron boron,

sintered rare earth magnets
