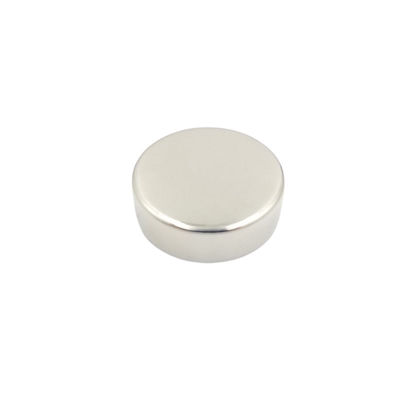

High Strength Silver Neodymium Round Magnets N38 Neodymium Magnets

Products

Rubber Coated Magnet

sales@unmagnet.com

86-592-5130661

Contact Now

High Strength Silver Neodymium Round Magnets N38 Neodymium Magnets

MOQ:	100pcs
Price:	As negotiation
Standard Packaging:	cartons,pallets
Delivery Period:	20-25days
Payment Method:	T/T L/C
Supply Capacity:	100 tons per month for NdFeB magnet

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

UNMAG

Certification

ISO9001, IATF16949, ISO14001

Shape:

Block,Arc,Ring,Customized Shape Magnet

Material:

Neodymium Iron Boron

Magnetic Orientation:

As Customization

Coating:

Nickel,NiCuNi,Zinc,Epoxy Etc

Application:

New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors

Working Temperature:

80~220°C

Grade:

N35-N52, 35M-50M, 35H-48H, 30SH-45SH...

Product Name:

Neodymium Circle Magnet,neodymium Round Base Magnet,round Disc Magnets

Highlight:

High Strength Neodymium Round Magnets

Neodymium Round Magnets N38

High Strength N38 Neodymium Magnets

Product Description

High Strength Silver Neodymium Round Magnets N38 Neodymium Magnets

Product Specifications

Attribute	Value
Shape	Block, Arc, Ring, Customized Shape Magnet
Material	Neodymium Iron Boron
Magnetic Orientation	As Customization
Coating	Nickel, NiCuNi, Zinc, Epoxy Etc
Application	New Energy Cars, Wind Power Generation, Servo Motors, Traction Motors
Working Temperature	80~220°C
Grade	N35-N52, 35M-50M, 35H-48H, 30SH-45SH...

Product Description

Sintered Neodymium Magnet is a high-performance permanent magnet manufactured using powder metallurgy technology. Made from neodymium iron boron material, these ISO9001, IATF16949, and ISO14001 certified magnets offer superior magnetic properties and can be customized for magnetic orientation. With an operational temperature range of 80°C to 220°C, they are widely used in electrical, medical, automotive, and electronics industries.

Key Features

Multiple coating options: Nickel, NiCuNi, Zinc, Epoxy
Wide range of grades available: N35-N52, 35M-50M, 35H-48H, 30SH-45SH
Customizable magnetic orientation
High temperature resistance (up to 220°C)
Certifications: ISO9001, IATF16949, ISO14001

Physical Properties

Parameter Name	Parameter Values	Unit
Curie Temperature	310～380	℃
Relative Recoil Permeability	1.02～1.05
Reversible Temperature Coefficient of Br (20~100℃)	-0.09～-0.13	%/℃
Density	7.50～7.70	g/cm3
Vickers Hardness	550～700
Compressive Strength	800 ~1050	MPa
Electric Resistivity	150	μΩ·cm

Manufacturing Process

Mix the ingredients

Dissolve the mixture at high temperature and prepare an alloy

Turn the alloy into fine powder

Press the powder while applying a magnetic field to align magnetization

Sinter at about 1,100℃ followed by heat treatment at 600℃

Machine the base material into final product shape

Apply rustproof surface treatment

Magnetize the product

Applications

These high-performance neodymium magnets are extensively used in:

New energy vehicles
Wind power generation systems
Servo motors
Traction motors
Various industrial and electronic applications

Customization Options

We offer comprehensive customization services including:

Various shapes: blocks, arcs, rings, and custom geometries
Multiple grade options from N35-N52 to 30SH-45SH
Custom magnetic orientations
Different surface coatings to suit application requirements

Packaging & Shipping

Our sintered neodymium magnets are vacuum packed in carton boxes for optimal protection. Standard delivery time is 20-25 days, with worldwide shipping available. These high-strength magnets require careful handling during transportation.
