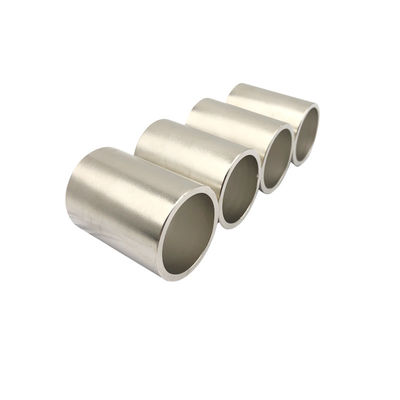

Sintered Neodymium Magnet Multi Polar Custom Neodymium Magnets

MOQ:	100pcs
Price:	As negotiation
Standard Packaging:	cartons,pallets
Delivery Period:	20-25days
Payment Method:	T/T L/C
Supply Capacity:	100 tons per month for NdFeB magnet

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

UNMAG

Grade:

N35-N52

Magnetic Performance:

Stable

Shape:

Customized

Corrosion Resistance:

High

Application:

New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors

Temperature Resistance:

High

Size:

Customized

Magnetic Orientation:

Axial,Multi-polar,As Customization

Highlight:

Axial Sintered Neodymium Magnet

Axial Custom Neodymium Magnets

Multi Polar Custom Neodymium Magnets

Product Description

Sintered Neodymium Magnet Multi Polar Custom Neodymium Magnets

Product Specifications

Grade: N35-N52

Magnetic Performance: Stable

Shape: Customized

Corrosion Resistance: High

Application: New Energy Cars, Wind Power Generation, Servo Motors, Traction Motors

Temperature Resistance: High

Size: Customized

Magnetic Orientation: Axial, Multi-polar, As Customization

High Magnetic Flux Density Sintered Neodymium Magnet

Neodymium Iron Boron (NdFeB) or Neodymium magnets are extremely strong for their size. Available in various shapes including rings, blocks, discs and custom configurations. To prevent oxidation, these magnets are typically finished with zinc, nickel or epoxy coatings.

Manufacturing Process

The manufacturing process involves melting the elements together and milling them into powder. This powder is then dry-pressed into shape under a magnetic field, sintered, ground to precise dimensions, magnetized, and thoroughly tested. These are classified as "rare earth" magnets due to their composition from elements in the lanthanides section of the Periodic Table.

Magnetic Properties

Grade	Remanence (Br)	Coercivity (HcB)	Intrinsic Coercivity (HcJ)	Max Energy Product (BH)max	Working Temp (Tw)
N Series (N35-N52)	11.7-14.8 KGs	≥10.0-11.6 KOe	≥11-12 KOe	33-53 MGOe	≤60-80℃
M Series (35M-52M)	11.7-14.8 KGs	≥10.9-13.0 KOe	≥14 KOe	33-52 MGOe	≤100℃
H Series (33H-48H)	11.3-14.3 KGs	≥10.6-12.5 KOe	≥17 KOe	31-49 MGOe	≤120℃
SH Series (30SH-48SH)	10.8-14.3 KGs	≥10.1-12.6 KOe	≥20 KOe	28-49 MGOe	≤150℃
UH Series (30UH-42UH)	10.8-13.2 KGs	≥10.2-11.3 KOe	≥25 KOe	28-43 MGOe	≤180℃
EH Series (30EH-38EH)	10.8-12.5 KGs	≥10.2-11.3 KOe	≥30 KOe	28-39 MGOe	≤200℃

Applications

These high-performance neodymium magnets are ideal for applications requiring exceptional magnetic force in compact spaces. Common uses include:

Medical equipment and devices
Magnetic separators and linear actuators
Microphone assemblies and speaker systems
Servo motors and DC motors (including automotive starters)
Computer hard disk drives and printers
New energy vehicles and wind power generation systems
Traction motors and industrial automation equipment

Tolerance Control

Dimension	Range (mm)	Tolerance (mm)
Wall thickness	T≤10	±0.04
	10<T≤30	±0.05
	30<T≤50	±0.06
Length	L≤10	±0.04
	10<L≤30	±0.05
	30<L≤50	±0.05
	L>50	±0.08
Width	W>50	±0.05
Length & Width	L>50 & W≥50	±0.08

Available size range: Length ≤200mm, Width ≤100mm, Thickness: 1.5-50mm, Height: 3-60mm
