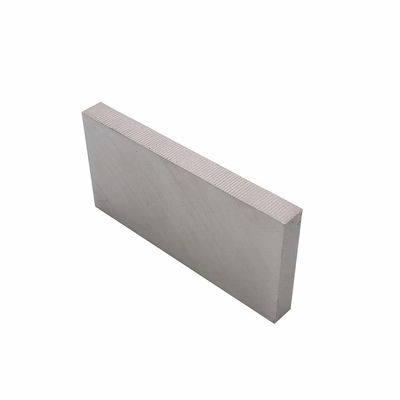

Customizable Cast Alnico 5 Bar Magnets For Measuring Instrument
  • name
  • name
  • name
  • name

Customizable Cast Alnico 5 Bar Magnets For Measuring Instrument

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 20 tons per month for SmCo magnet
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
UNMAG
Grade:
Alnico 5,8 Is Normally Used
BHmax:
1.13-9 MGOe
Material:
Cast Alnico
Application:
Generator, Microphone, Measuring Instrument
Tolerance:
±0.05mm
Type:
Permanent Magnet
Max Operating Temperature:
550℃
Magnetization Direction:
Axial, Radial, Multi-poles...
Highlight:

Customizable Alnico 5 Bar Magnets

,

Cast Alnico 5 Bar Magnets

,

Customizable Alnico bar Magnets

Product Description
Customizable Cast Alnico 5 Bar Magnets For Measuring Instrument
Product Overview

Alnico permanent magnets are high-performance ferromagnetic materials composed of aluminum, nickel, cobalt, and other metals. These magnets offer exceptional magnetic properties, high coercive force, outstanding temperature stability, and corrosion resistance.

Key Specifications
Attribute Value
Grade Alnico 5,8 Is Normally Used
BHmax 1.13-9 MGOe
Material Cast Alnico
Application Generator, Microphone, Measuring Instrument
Tolerance ±0.05mm
Type Permanent Magnet
Max Operating Temperature 550℃
Magnetization Direction Axial, Radial, Multi-poles
Technical Features
  • High magnetic flux density and coercive force (Hcj ≥30 KA/m)
  • Excellent temperature stability with maximum operating temperature of 550℃
  • Superior corrosion resistance
  • Available in cast and sintered variants
  • Precision tolerance of ±0.05mm
  • Customizable magnetization directions (axial, radial, multi-poles)
Applications

Our Alnico magnets are widely used in:

  • Measuring instruments
  • Generators and motors
  • Microphones and audio equipment
  • Aerospace components
  • Automotive systems
  • Medical devices
  • Electronics
Technical Parameters
Grade Equivalent MMPA Class Remanence (Br) Intrinsic Coercivity (Hcj) Coercivity (Hcb) Maximum Energy Product (BH)max Density (g/cm3) Reversible Temp. Coefficient (%/℃) Curie Temp. (℃) Remark
FLN8 Alnico3 520 mT (5200 Gs) 43 KA/m (540 Oe) 40 KA/m (500 Oe) 8-10 KJ/m3 (1.0-1.25 MGOe) 6.8 -0.02 760 Isotropic
FLNG12 Alnico2 700 mT (7000 Gs) 43 KA/m (540 Oe) 40 KA/m (500 Oe) 12-14 KJ/m3 (1.5-1.75 MGOe) 7 -0.014 810
FLNGT18 Alnico8 600 mT (6000 Gs) 107 KA/m (1350 Oe) 95 KA/m (1200 Oe) 18-22 KJ/m3 (2.25-2.75 MGOe) 7.2 -0.02 850
FLNG34 Alnico5 1100 mT (11000 Gs) 51 KA/m (640 Oe) 50 KA/m (630 Oe) 34-38 KJ/m3 (3.5-4.15 MGOe) 7.2 -0.016 890
Customization Options

We offer fully customizable Alnico permanent magnets to meet your specific requirements:

  • Available in Alnico5, Alnico8, and Alnico8 grades
  • Custom magnetization directions (axial, radial, multi-poles)
  • Precision dimensional tolerances
  • Special surface treatments available
Packaging & Shipping

Our Alnico magnets are carefully packaged to ensure safe delivery:

  • Individual protective bags or boxes based on product size
  • Bubble wrap, anti-static bags, and foam padding
  • Properly marked for international shipping with all required customs information
  • Standard delivery time: 25-30 days
