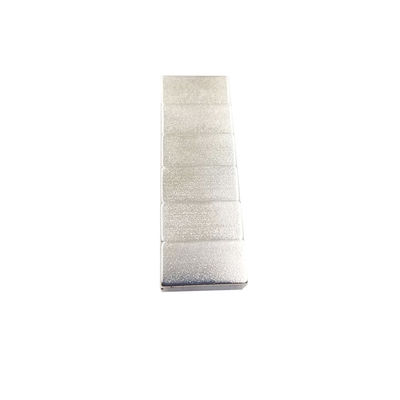

35M-50M 35H-48H Powerful Neodymium Bar Magnets Sintered High Strength

35M-50M 35H-48H Powerful Neodymium Bar Magnets Sintered High Strength

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 100 tons per month for NdFeB magnet
Detail Information
Place of Origin
China
Brand Name
UNMAG
Certification
ISO9001, IATF16949, ISO14001
Working Temperature:
80~220°C
Magnetic Orientation:
As Customization
Coating:
Nickel,NiCuNi,Zinc,Epoxy Etc
Shape:
Block,Arc,Ring,Customized Shape Magnet
Application:
New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors
Material:
Neodymium Iron Boron
Grade:
N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
Highlight:

Powerful Neodymium Bar Magnets Sintered

,

50M Neodymium Bar Magnets

,

35M super strong bar magnets

Product Description
35M-50M 35H-48H Powerful Neodymium Bar Magnets Sintered High Strength
Product Overview

Sintered Neodymium Magnets are high-performance permanent magnets made through powder metallurgy processes. They offer the strongest magnetic properties available, with exceptional coercivity and maximum energy product. These magnets are available in various shapes and grades, with customizable magnetic orientation and protective coatings.

Key Specifications
Attribute Value
Working Temperature 80~220°C
Magnetic Orientation Customizable
Coating Options Nickel, NiCuNi, Zinc, Epoxy
Available Shapes Block, Arc, Ring, Customized
Primary Applications New Energy Cars, Wind Power Generation, Servo Motors, Traction Motors
Material Neodymium Iron Boron
Grade Range N35-N52, 35M-50M, 35H-48H, 30SH-45SH
Technical Properties
Magnetic Performance Characteristics
Grade Remanence (Br) Coercivity (HcB) Intrinsic Coercivity (HcJ) Max Energy Product Working Temp
NSeries
N35 11.7-12.2 KGs ≥10.9 KOe ≥12 KOe 33-36 MGOe ≤80°C
N38 12.2-12.5 KGs ≥11.3 KOe ≥12 KOe 36-39 MGOe ≤80°C
N40 12.5-12.8 KGs ≥11.4 KOe ≥12 KOe 38-41 MGOe ≤80°C
MSeries
35M 11.7-12.2 KGs ≥10.9 KOe ≥14 KOe 33-36 MGOe ≤100°C
38M 12.2-12.5 KGs ≥11.3 KOe ≥14 KOe 36-39 MGOe ≤100°C
40M 12.5-12.8 KGs ≥11.6 KOe ≥14 KOe 38-40 MGOe ≤100°C
HSeries
35H 11.7-12.2 KGs ≥10.9 KOe ≥17 KOe 33-36 MGOe ≤120°C
38H 12.2-12.5 KGs ≥11.3 KOe ≥17 KOe 36-39 MGOe ≤120°C
40H 12.5-12.8 KGs ≥11.6 KOe ≥17 KOe 38-41 MGOe ≤120°C

Complete grade specifications available upon request.

Applications

These high-performance neodymium magnets are ideal for demanding industrial applications including:

  • Electric vehicle components in New Energy Cars
  • Generator systems for Wind Power Generation
  • Precision motion control in Servo Motors
  • High-torque applications in Traction Motors
Certifications & Quality

Our sintered neodymium magnets meet international quality standards including:

  • ISO9001 Quality Management System
  • IATF16949 Automotive Quality Standard
  • ISO14001 Environmental Management
Packaging & Shipping

Magnets are carefully packaged in protective foam, plastic, and cardboard to prevent damage during transit. All packages include product identification and are designed to withstand environmental factors. Standard delivery time is 20-25 days.

Customization Options

We offer complete customization of magnet specifications including:

  • Custom shapes and dimensions
  • Specialized magnetic orientations
  • Various protective coating options
  • Specific performance grades
