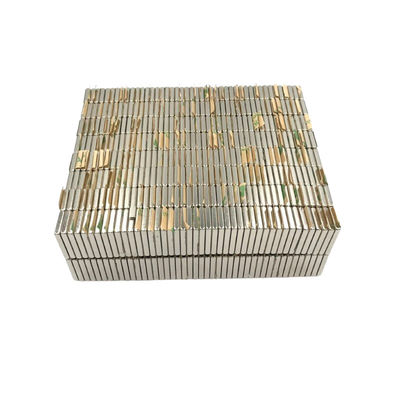

30SH-45SH Sintered Rare Earth Bar Magnets Industrial Bar Magnets
  • name
  • name
  • name
  • name
  • name

30SH-45SH Sintered Rare Earth Bar Magnets Industrial Bar Magnets

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 100 tons per month for NdFeB magnet
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
UNMAG
Certification
ISO9001, IATF16949, ISO14001
Grade:
N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
Magnetic Orientation:
As Customization
Coating:
Nickel,NiCuNi,Zinc,Epoxy Etc
Material:
Neodymium Iron Boron
Application:
New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors
Shape:
Block,Arc,Ring,Customized Shape Magnet
Working Temperature:
80~220°C
Highlight:

Sintered rare earth bar magnets

,

45SH rare earth bar magnets

,

30SH industrial bar magnets

Product Description
30SH-45SH Sintered Rare Earth Bar Magnets Industrial Bar Magnets
Product Overview

Sintered Neodymium Magnet is a high-performance permanent magnet made from a neodymium-iron-boron alloy compound. Manufactured through high-temperature sintering process, these magnets offer superior magnetic energy product compared to other permanent magnet types. Ideal for demanding applications requiring exceptional magnetic performance, durability, and temperature resistance.

Key Specifications
Material
Neodymium Iron Boron
Grades Available
N35-N52, 35M-50M, 35H-48H, 30SH-45SH
Working Temperature
80~220°C
Coating Options
Nickel, NiCuNi, Zinc, Epoxy
Certifications
ISO9001, IATF16949, ISO14001
Magnetic Orientation
Customizable
Primary Applications
  • New Energy Vehicles
  • Wind Power Generation Systems
  • Servo Motors
  • Traction Motors
  • Industrial Sensors and Actuators
  • Aerospace Components
  • Medical Equipment
  • Audio Systems
Physical Properties
Parameter Value Unit
Curie Temperature 310～380 ℃
Density 7.50～7.70 g/cm³
Vickers Hardness 550～700
Tensile Strength ≥80 MPa
Compressive Strength 800～1050 MPa
Electric Resistivity 150 μΩ·cm
Thermal Conductivity 8～10 W/(M·℃)
Coating Specifications
Coating Material Properties Application Environment Thickness
Zinc Compact, Stable, Homogeneous Reasonable corrosion resistance 6-12μm
Nickel-Copper-Nickel Light and Stable Higher corrosive environments 15-30μm
Epoxy Lustrous, Insulating Higher corrosive environments ≥15μm
Al+Epoxy Lustrous, Excellent protection Hostile environments (salt spray resistance >650hr) 15-35μm
Customization Options

Our sintered neodymium magnets are available in various shapes including blocks, arcs, rings, and custom geometries. We offer complete customization of:

  • Magnetic orientation and strength
  • Surface coatings for specific environmental requirements
  • Precision dimensions and tolerances
  • Special packaging for sensitive applications
Packaging & Shipping

Magnets are carefully packaged in protective plastic bags or paper boxes, then secured in larger shipping containers with foam or other cushioning materials. Standard delivery time is 20-25 days. Special packaging solutions available for sensitive or high-volume orders.
