N35-N52 Neodymium Cup Magnets With Countersunk Hole For Salvage
  • name
  • name
  • name

N35-N52 Neodymium Cup Magnets With Countersunk Hole For Salvage

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 100 tons per month for NdFeB magnet
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
UNMAG
Tolerance:
±0.1mm
Working Temperature:
-20℃ To 80℃
MOQ:
100 Pieces
Magnetic Direction:
Thickness,Axial..
Material:
Neodymium
Packaging:
Carton Box
Pull Force:
As Customized
Grade:
N35-N52
Highlight:

cup magnets with countersunk hole

,

N52 Neodymium Cup Magnets

,

N35 Neodymium Cup Magnets

Product Description
N35-N52 Neodymium Cup Magnets With Countersunk Hole For Salvage
Product Specifications
Attribute Value
Tolerance ±0.1mm
Working Temperature -20℃ To 80℃
MOQ 100 Pieces
Magnetic Direction Thickness, Axial
Material Neodymium
Packaging Carton Box
Pull Force As Customized
Grade N35-N52
Product Description

Our pot-shaped neodymium magnets provide a reliable and efficient solution for a wide range of industrial applications including electrical motors, sensors, meters, and other equipment. Designed for precision with a tolerance of ±0.1mm, these magnets offer axial or thickness magnetization and operate within a temperature range of -20℃ to 80℃.

Key Features
  • High-strength neodymium material with nickel coating
  • Customizable pull force options
  • Precision manufacturing with ±0.1mm tolerance
  • Axial or thickness magnetization options
  • Sturdy carton box packaging for safe delivery

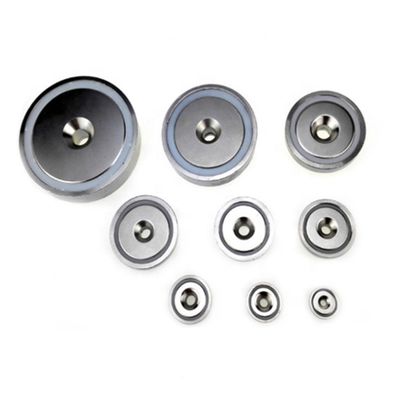

N35-N52 Neodymium Cup Magnets With Countersunk Hole For Salvage 0 N35-N52 Neodymium Cup Magnets With Countersunk Hole For Salvage 1
Technical Parameters
Model D (mm) D1 (mm) D2 (mm) H (mm) Hole Degree Strength (kg)
UN-A16 16 3.5 6.5 5 90° 5
UN-A20 20 4.5 8.6 7 90° 6
UN-A25 25 5.5 10.5 8 90° 14
UN-A32 32 5.5 10.5 8 90° 25
UN-A36 36 6.5 12 9 90° 29
UN-A42 42 6.5 12 9 90° 37
UN-A48 48 8.5 16 11.5 90° 68
UN-A60 60 8.5 16 15 90° 112
UN-A75 75 10.5 20 18 90° 162
UN-A90 90 10.5 20 18 90° 300
UN-A120 120 12.5 20.5 18 90° 600
Applications

UNMAG pot neodymium magnets are ideal for professional applications requiring high strength, durability, and corrosion resistance. The nickel coating makes them suitable for harsh environments, while axial magnetization provides enhanced magnetic force for industrial and commercial uses.

Customization Options

Our neodymium pot magnets are available in various grades (N35-N52), sizes, and shapes to meet specific application requirements. Custom pull force options are available upon request.

Packaging & Shipping

Each magnet is securely packaged in sturdy cardboard boxes with protective bubble wrap to ensure safe delivery. We partner with reliable carriers to guarantee your order arrives in perfect condition.

Tags:

threaded neodymium magnets,

pot neodymium magnet,

ndfeb pot magnet
