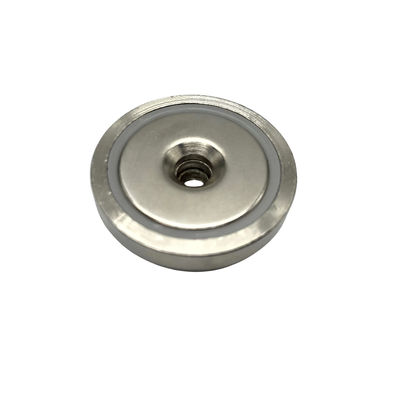

Powerful Permanent Pot Neodymium Magnet High Pull Force N35-N52 Grade
  • name
  • name
  • name
  • name
  • name

Powerful Permanent Pot Neodymium Magnet High Pull Force N35-N52 Grade

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 100 tons per month for NdFeB magnet
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
UNMAG
Tolerance:
±0.1mm
Magnetic Direction:
Thickness,Axial..
Working Temperature:
-20℃ To 80℃
MOQ:
100 Pieces
Material:
Neodymium
Shape:
Disc
Size:
Customized
Pull Force:
High
Highlight:

Pot Neodymium Magnet High Pull Force

,

Powerful Pot Neodymium Magnet

,

N35 pot shaped magnet

Product Description
Powerful Permanent Pot Neodymium Magnet High Pull Force N35-N52 Grade
Product Specifications
Tolerance ±0.1mm
Magnetic Direction Thickness, Axial
Working Temperature -20℃ To 80℃
MOQ 100 Pieces
Material Neodymium
Shape Disc
Size Customized
Pull Force High
Product Overview

Our Pot Neodymium Magnet is a powerful NdFeB mounting magnet made from neodymium iron boron. Its high pull force keeps items secure even in harsh environments with working temperatures ranging from -20℃ to 80℃. Each magnet is carefully packed in carton boxes to ensure safe delivery, with a minimum order quantity of 100 pieces.

Powerful Permanent Pot Neodymium Magnet High Pull Force N35-N52 Grade 0 Powerful Permanent Pot Neodymium Magnet High Pull Force N35-N52 Grade 1
Technical Parameters
Model D (Mm) D1 (Mm) D2 (Mm) H (Mm) Hole Degree Strength (Kg)
UN-A16 16 3.5 6.5 5 90° 5
UN-A20 20 4.5 8.6 7 90° 6
UN-A25 25 5.5 10.5 8 90° 14
UN-A32 32 5.5 10.5 8 90° 25
UN-A36 36 6.5 12 9 90° 29
UN-A42 42 6.5 12 9 90° 37
UN-A48 48 8.5 16 11.5 90° 68
UN-A60 60 8.5 16 15 90° 112
UN-A75 75 10.5 20 18 90° 162
UN-A90 90 10.5 20 18 90° 300
UN-A120 120 12.5 20.5 18 90° 600
Applications

UNMAG Neodymium Pot Magnets are ideal solutions for mounting, holding and lifting applications across industrial, commercial and residential settings. Their unique pot shape concentrates strong magnetic force on one side, with holding force that can be increased by adding steel plates.

Available in various sizes and shapes including discs, cylinders, and blocks, these magnets offer pull forces up to 100lbs for heavy-duty applications. Their superior magnetic performance along thickness and axial directions makes them perfect for:

  • Industrial equipment mounting
  • Material handling and lifting
  • Secure holding applications
  • Customized magnetic solutions
Customization Options

We offer customized NdFeB mounting magnets including neodymium hooks and rare earth pot magnets. Our products can be tailored to your specific requirements in various shapes, sizes, and pull forces to meet your application needs.

Support & Services

Our team provides comprehensive technical support for Pot Neodymium Magnets, including product advice and troubleshooting. All products come with a warranty covering material and workmanship defects.

For any inquiries or support needs, please contact our professional team for prompt assistance.
