Disc Shape High Grade Neodymium Pot Magnets With Threaded Hole

MOQ:	100pcs
Price:	As negotiation
Standard Packaging:	cartons,pallets
Delivery Period:	20-25days
Payment Method:	T/T L/C
Supply Capacity:	100 tons per month for NdFeB magnet

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

UNMAG

Shape:

Disc

Magnetic Direction:

Thickness,Axial..

Coating:

Nickel

MOQ:

100 Pieces

Pull Force:

High

Packaging:

Carton Box

Grade:

N35-N52

Size:

Customized

Highlight:

High Grade Neodymium Pot Magnets

Disc Magnets With Threaded Hole

Product Description

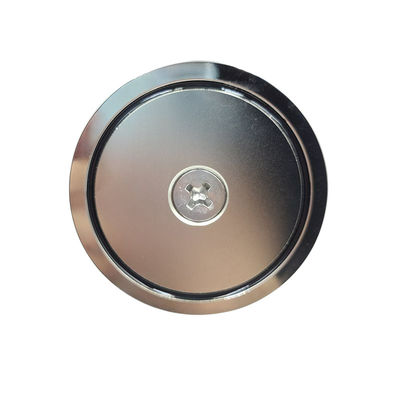

Disc Shape High Grade Neodymium Pot Magnets With Threaded Hole

Product Specifications

Attribute	Value
Shape	Disc
Magnetic Direction	Thickness, Axial
Coating	Nickel
MOQ	100 Pieces
Pull Force	High
Packaging	Carton Box
Grade	N35-N52
Size	Customized

Product Overview

Our high-performance Neodymium Pot Magnets are manufactured from premium Neodymium material with Nickel coating, featuring a precision tolerance of ±0.1mm. Designed for axial and thickness magnetic orientation, these magnets offer superior holding power for industrial, commercial, and consumer applications.

Key Features

Material: Neodymium (NdFeB)
Coating: Nickel for corrosion resistance
Grade Range: N35-N52 for varying strength requirements
Tolerance: ±0.1mm precision
Magnetic Direction: Axial or thickness magnetization
Minimum Order Quantity: 100 pieces

Technical Parameters

Model	D (Mm)	D1 (Mm)	D2 (Mm)	H (Mm)	Hole Degree	Strength (Kg)
UN-A16	16	3.5	6.5	5	90°	5
UN-A20	20	4.5	8.6	7	90°	6
UN-A25	25	5.5	10.5	8	90°	14
UN-A32	32	5.5	10.5	8	90°	25
UN-A36	36	6.5	12	9	90°	29
UN-A42	42	6.5	12	9	90°	37
UN-A48	48	8.5	16	11.5	90°	68
UN-A60	60	8.5	16	15	90°	112
UN-A75	75	10.5	20	18	90°	162
UN-A90	90	10.5	20	18	90°	300
UN-A120	120	12.5	20.5	18	90°	600

Applications

Our UNMAG Pot Neodymium Magnets are engineered for demanding applications across multiple industries:

Motors and sensors
Display mounting systems
Lifting and fixing solutions
Automotive components
Medical equipment
Aerospace applications
Electronics and consumer products

Customization Options

We offer comprehensive customization services for Pot Neodymium Magnets:

Brand: UNMAG
Origin: China
Working Temperature: -20℃ to 80℃
Available Grades: N35-N52
Custom sizes and configurations

Technical Support & Services

Our expert team provides comprehensive support for all Pot Neodymium Magnet applications:

Installation guidance and troubleshooting
Maintenance and repair services
Phone and remote technical support
Custom application consulting
