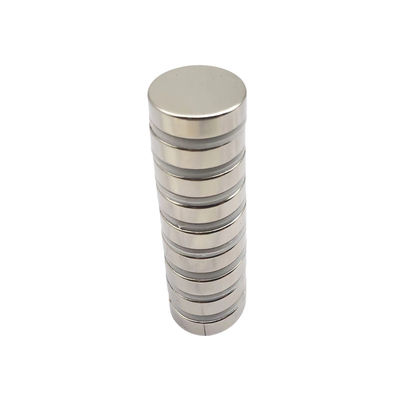

Custom Sintered Neodymium Magnet High Temperature Resistant 8mm Round Magnets
  • name
  • name
  • name

Custom Sintered Neodymium Magnet High Temperature Resistant 8mm Round Magnets

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 100 tons per month for NdFeB magnet
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
UNMAG
Certification
ISO9001, IATF16949, ISO14001
Magnetic Orientation:
Axial,Multi-polar,As Customization
Grade:
N35-N52
Shape:
Customized
Temperature Resistance:
High
Size:
Customized
Pull Force:
High
Application:
New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors
Highlight:

Custom Sintered Neodymium Magnet

,

8mm Round Magnets

,

Custom 8mm Round Magnets

Product Description
Custom Sintered Neodymium Magnet High Temperature Resistant 8mm Round Magnets
Product Specifications
Attribute Value
Magnetic Orientation Axial, Multi-polar, As Customization
Grade N35-N52
Shape Customized
Temperature Resistance High
Size Customized
Pull Force High
Application New Energy Cars, Wind Power Generation, Servo Motors, Traction Motors
Product Overview
Sintered Neodymium Magnets are made from a high-performance magnet material called Neodymium-Iron-Boron. This alloy is composed of Neodymium, Iron and Boron, and is one of the most powerful magnetic materials available today.
Key Features:
  • High-performance magnetic material with exceptional field strength
  • Excellent temperature resistance and stable magnetic performance
  • Available in grades N35-N52 to meet various requirements
  • Customizable shapes, sizes, and magnetic orientations
  • Multiple coating options: Nickel, Zinc, Epoxy
  • Certified to ISO9001, IATF16949, and ISO14001 standards
Technical Specifications
Parameter Name Parameter Values Unit
Curie Temperature 310～380 ℃
Relative Recoil Permeability 1.02～1.05
Reversible Temperature Coefficient of Br (20~100℃) -0.09～-0.13 %/℃
Reversible Temperature Coefficient of Hcj (20~100℃) -0.4～-0.7 %/℃
Density 7.50～7.70 g/cm3
Vickers Hardness 550～700
Compressive Strength 800 ~1050 MPa
Electric Resistivity 150 μΩ·cm
Manufacturing Process
Step Description
1. Mixing Mix the ingredients
2. Melting Dissolve the mixture at high temperature and prepare an alloy
3. Fine pulverization Turn the alloy into fine powder
4. Molding in a magnetic field Apply a magnetic field while pressing the powder to align magnetization directions
5. Sintering and heat treatment Sinter at about 1,100℃, then heat treat at about 600℃ to enhance magnetic characteristics
6. Processing Finish the magnet base material into the product shape
7. Surface treatment Apply rustproof surface treatment
8. Magnetization Apply a magnetic field to give the magnet its final magnetism
Applications
Our Sintered Neodymium Magnets are widely used in demanding industrial applications including:
  • New Energy Vehicle systems
  • Wind Power Generation equipment
  • Precision Servo Motors
  • High-performance Traction Motors
Customization & Support
We offer comprehensive customization services for Sintered Neodymium Magnets with competitive pricing. Our technical support team provides expert advice on installation, troubleshooting, and maintenance, backed by product warranties for your peace of mind.
