Long Neodymium Bar Magnets N35-N52 industrial Rare Earth Magnetic

MOQ:	100pcs
Price:	As negotiation
Standard Packaging:	cartons,pallets
Delivery Period:	20-25days
Payment Method:	T/T L/C
Supply Capacity:	100 tons per month for NdFeB magnet

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

UNMAG

Magnetic Orientation:

Axial,Multi-polar,As Customization

Size:

Customized

Application:

New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors

Grade:

N35-N52

Magnetic Performance:

Stable

Material:

Neodymium

Magnetic Field Strength:

High

Highlight:

Long Neodymium Bar Magnets N35

N52 Long Neodymium Bar Magnets

N52 Industrial Rare Earth Magnetic

Product Description

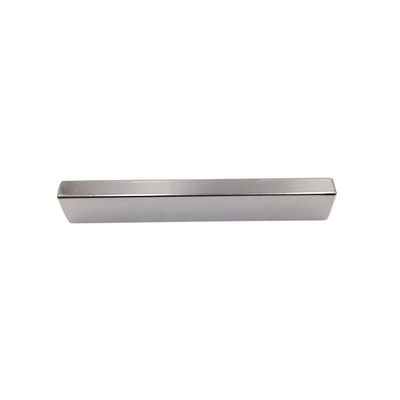

Long Neodymium Bar Magnets N35-N52 Industrial Rare Earth Magnetic

Product Overview

Customized high flux density sintered neodymium magnets made from neodymium-iron-boron alloy (NdFeB). These rare earth magnets offer the highest energy product available, with grades ranging from N35 to N52 and stable magnetic performance.

Key Specifications

Material: Neodymium-Iron-Boron (NdFeB)

Grade Range: N35-N52

Magnetic Orientation: Axial, Multi-polar, Customizable

Size: Fully customizable

Coating Options: Nickel, Zinc, Epoxy

Certifications: ISO9001, IATF16949, ISO14001

Technical Parameters

Property	Value
Temperature Resistance	High
Magnetic Flux Density	High
Magnetic Performance	Stable
Shape	Customized

Magnetic Properties

Grade Performance Specifications

Grade	Remanence (Br)	Coercivity (HcB)	Max Energy Product	Working Temp (°C)
N35	11.7-12.2 KGs	≥10.9 KOe	33-36 MGOe	≤80
N52	14.3-14.8 KGs	≥10.0 KOe	50-53 MGOe	≤60
48M	13.6-14.3 KGs	≥12.9 KOe	46-49 MGOe	≤100
48SH	13.7-14.3 KGs	≥12.6 KOe	46-49 MGOe	≤150

Applications

New Energy Cars

Wind Power Generation

Servo Motors

Traction Motors

Tolerance Control

Dimension	Range (mm)	Tolerance (mm)
Wall thickness	T≤10	±0.04
Length	L≤10	±0.04
Width	W>50	±0.05

Customization Options

Available in sizes up to L≤200mm, W≤100mm, with thickness ranging from 1.5-50mm. Custom shapes and specifications available to meet specific application requirements.

Technical Support & Services

Comprehensive support including product testing, technical consultation, troubleshooting, and replacement services. Contact our team for more information about our sintered neodymium magnet solutions.

Phone: 1-800-555-1212
