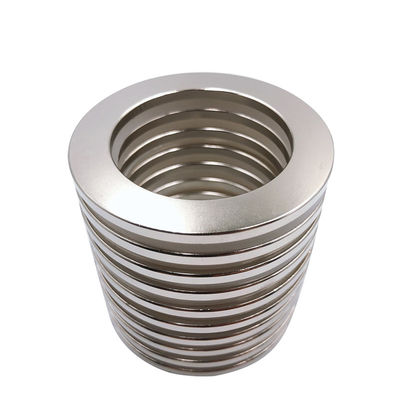

NiCuNi Coated Radially Oriented Ring Magnet For Servo Motors
| MOQ: | 100pcs |
| Price: | As negotiation |
| Standard Packaging: | cartons,pallets |
| Delivery Period: | 20-25days |
| Payment Method: | T/T L/C |
| Supply Capacity: | 100 tons per month for NdFeB magnet |
Detail Information
Place of Origin
China
Brand Name
UNMAG
Certification
ISO9001, IATF16949, ISO14001
Magnetic Orientation:
As Customization
Shape:
Block,Arc,Ring,Customized Shape Magnet
Working Temperature:
80~220°C
Application:
New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors
Material:
Neodymium Iron Boron
Grade:
N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
Coating:
Nickel,NiCuNi,Zinc,Epoxy Etc
Product Name:
N52 Ring Magnets,alnico Ring Magnets
Highlight:
NiCuNi Coated Radially Oriented Ring Magnet
,Servo Motors Radially Oriented Ring Magnet
Product Description
NiCuNi Coated Radially Oriented Ring Magnet For Servo Motors
Product Specifications
| Attribute | Value |
|---|---|
| Magnetic Orientation | As Customization |
| Shape | Block, Arc, Ring, Customized Shape Magnet |
| Working Temperature | 80~220°C |
| Application | New Energy Cars, Wind Power Generation, Servo Motors, Traction Motors |
| Material | Neodymium Iron Boron |
| Grade | N35-N52, 35M-50M, 35H-48H, 30SH-45SH... |
| Coating | Nickel, NiCuNi, Zinc, Epoxy Etc |
| Product Name | n52 ring magnets, alnico ring magnets |
Product Description
Sintered Neodymium Magnet is a high-performance magnet made of powder metallurgy. It has excellent magnetic properties, including high coercive force, high energy product and high remanence. This magnet is made of neodymium iron boron (NdFeB) materials with a working temperature between 80 and 220°C. Available in various shapes including blocks, arcs, rings and custom shapes, with customizable magnetic orientation. All products are certified with ISO9001, IATF16949 and ISO14001, ensuring superior quality and reliable performance.
Key Features
- Product Name: Sintered Neodymium Magnet
- Material: Neodymium Iron Boron
- Shape: Block, Arc, Ring, Customized Shape Magnet
- Working Temperature: 80~220°C
- Magnetic Orientation: As Customization
- Grade: N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
- Powder-Metallurgy-Magnet
- Neodymium-Iron-Boron
Magnetic Properties
| Grade | Remanence | Coercivity | Intrinsic Coercivity | Max Energy Product | Working Temp | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (Br) | (HcB) | (HcJ) | (BH)max | Tw | KGs | T | KOe | KA/m | KOe | KA/m | MGOe | KJ/m³ | ℃ |
| N Series | N35 | 11.7-12.2 | 1.17-1.22 | ≥10.9 | ≥868 | ≥12 | ≥955 | 33-36 | 263-287 | ≤80 | |||
| N38 | 12.2-12.5 | 1.22-1.25 | ≥11.3 | ≥899 | ≥12 | ≥955 | 36-39 | 287-310 | ≤80 | ||||
Maximum Working Temperature
| Grade | Working Temp (℃) |
|---|---|
| N35~N52 | ≤80 |
| 38M~50M | ≤100 |
| 35H~48H | ≤120 |
| 33SH~48SH | ≤150 |
| 30UH~40UH | ≤180 |
| 30EH~38EH | ≤200 |
Technical Parameters
| Property | Value |
|---|---|
| Application | New Energy Cars, Wind Power Generation, Servo Motors, Traction Motors |
| Material | Neodymium Iron Boron |
| Working Temperature | 80~220°C |
| Grade | N35-N52, 35M-50M, 35H-48H, 30SH-45SH... |
| Magnetic Orientation | As Customization |
| Shape | Block, Arc, Ring, Customized Shape Magnet |
| Coating | Nickel, NiCuNi, Zinc, Epoxy Etc |
| Certification | ISO9001, IATF16949, ISO14001 |
Applications
Our Sintered Neodymium Magnets are manufactured using high-performance Neodymium Iron Boron materials, sintered under high temperature for superior magnetic properties. They are widely used in new energy cars, wind power generation, servo motors, traction motors, and other industrial applications.
These magnets are available in various shapes including block, arc, ring, and custom configurations, with multiple coating options (nickel, NiCuNi, zinc, epoxy). With a working temperature range of 80~220°C, they deliver exceptional magnetic performance for demanding applications.
Customization & Shipping
We offer customized magnetic solutions in various shapes (block, arc, ring) with grades ranging from N35-N52 to specialized high-temperature variants. All magnets are packaged securely in carton boxes to ensure safe delivery within 20-25 days.
Our packaging is designed to protect against impacts and moisture during transit. We offer multiple shipping options including ground, air, and expedited services, with all shipments fully insured and tracked for your peace of mind.
