Nickel Coated Sintered Neodymium Magnet Grade 30SH-45SH 35H-48H
| MOQ: | 100pcs |
| Price: | As negotiation |
| Standard Packaging: | cartons,pallets |
| Delivery Period: | 20-25days |
| Payment Method: | T/T L/C |
| Supply Capacity: | 100 tons per month for NdFeB magnet |
Detail Information
Place of Origin
China
Brand Name
UNMAG
Certification
ISO9001, IATF16949, ISO14001
Coating:
Nickel,NiCuNi,Zinc,Epoxy Etc
Material:
Neodymium Iron Boron
Grade:
N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
Magnetic Orientation:
As Customization
Application:
New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors
Shape:
Block,Arc,Ring,Customized Shape Magnet
Working Temperature:
80~220°C
Highlight:
Nickel Coated Sintered Neodymium Magnet
,Sintered Neodymium Magnet 45SH
,30SH sintered ndfeb magnets
Product Description

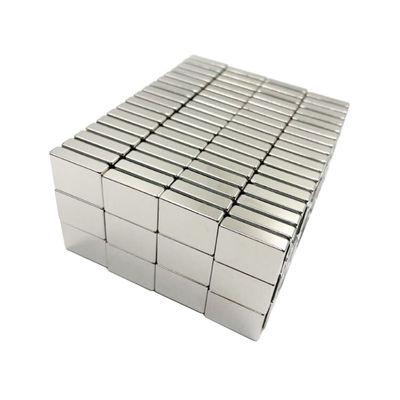

Nickel Coated Sintered Neodymium Magnet Grade 30SH-45SH 35H-48H
Product Overview
Sintered Neodymium Magnets are permanent magnets made from Neodymium Iron Boron (NdFeB) material, offering the strongest magnetic properties available. These high-performance magnets are widely used in motors, generators, sensors, and loudspeakers across various industries.
Key Specifications
| Attribute | Value |
|---|---|
| Material | Neodymium Iron Boron |
| Grades Available | N35-N52, 35M-50M, 35H-48H, 30SH-45SH |
| Coating Options | Nickel, NiCuNi, Zinc, Epoxy |
| Working Temperature | 80~220°C |
| Shapes Available | Block, Arc, Ring, Customized |
| Certifications | ISO9001, IATF16949, ISO14001 |
Physical Properties
| Parameter | Value | Unit |
|---|---|---|
| Curie Temperature | 310～380 | ℃ |
| Density | 7.50～7.70 | g/cm3 |
| Compressive Strength | 800 ~1050 | MPa |
| Tensile Strength | ≥80 | MPa |
| Electric Resistivity | 150 | μΩ·cm |
| Thermal Conductivity | 8～10 | W/(M·℃) |
Applications
Our high-performance sintered neodymium magnets are ideal for demanding applications including:
- New Energy Vehicles
- Wind Power Generation Systems
- Servo Motors
- Traction Motors
- Industrial Sensors
- Audio Equipment
Customization Options
We offer complete customization capabilities to meet your specific requirements:
- Wide range of grades from N35 to N52
- Multiple coating options for corrosion protection
- Custom shapes including blocks, arcs, rings
- Precision dimensional tolerances
- Special magnetic orientations
Standard size range: Length ≤200mm, Width ≤100mm, Thickness: 1.5~50mm
Packaging & Shipping
All magnets are carefully packaged to ensure safe delivery:
- Individually sealed in plastic bags
- Protected with bubble wrap
- Shipped in sturdy cardboard boxes
- Clearly labeled with product information
Standard delivery time: 20-25 days after order confirmation
UNMAG specializes in manufacturing high-quality sintered neodymium magnets with superior magnetic properties, temperature stability, and corrosion resistance. Our magnets meet international quality standards and are trusted by industrial clients worldwide.
