N35-N52 Neodymium Cup Magnets With Countersunk Hole For Salvage
| MOQ: | 100pcs |
| Price: | As negotiation |
| Standard Packaging: | cartons,pallets |
| Delivery Period: | 20-25days |
| Payment Method: | T/T L/C |
| Supply Capacity: | 100 tons per month for NdFeB magnet |
cup magnets with countersunk hole
,N52 Neodymium Cup Magnets
,N35 Neodymium Cup Magnets
| Attribute | Value |
|---|---|
| Tolerance | ±0.1mm |
| Working Temperature | -20℃ To 80℃ |
| MOQ | 100 Pieces |
| Magnetic Direction | Thickness, Axial |
| Material | Neodymium |
| Packaging | Carton Box |
| Pull Force | As Customized |
| Grade | N35-N52 |

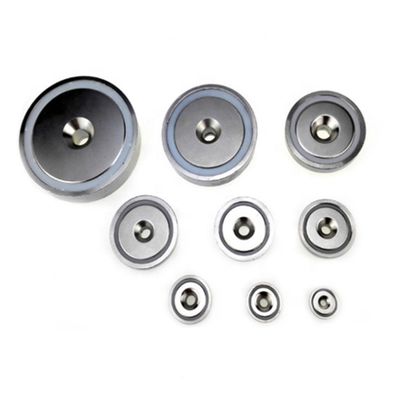

Our Pot Neodymium Magnet is a pot-shaped neodymium magnet, offering a reliable and efficient solution for a wide range of applications. It can be widely used with electrical motors, sensors, meters and other industrial equipment. With a tolerance of ±0.1mm, this Pot Neodymium Magnet can be used in precision applications.
It is magnetized in either axial or thickness direction and has a working temperature range of -20℃ to 80℃. The pull force of our Pot Neodymium Magnet can be customized according to the needs of customers. The Pot Neodymium Magnet is also packaged in a carton box to ensure safe delivery.
- Product Name: Pot Neodymium Magnet
- Working Temperature: -20℃ To 80℃
- Coating: Nickel
- Packaging: Carton Box
- Pull Force: As Customized
- Tolerance: ±0.1mm
- Neodymium Pot-Shaped Magnet
- Neodymium Pot Magnet
- Pot Neodymium Magnet
| Model | D (mm) | D1 (mm) | D2 (mm) | H (mm) | Hole Degree | Strength (kg) |
|---|---|---|---|---|---|---|
| UN-A16 | 16 | 3.5 | 6.5 | 5 | 90° | 5 |
| UN-A20 | 20 | 4.5 | 8.6 | 7 | 90° | 6 |
| UN-A25 | 25 | 5.5 | 10.5 | 8 | 90° | 14 |
| UN-A32 | 32 | 5.5 | 10.5 | 8 | 90° | 25 |
| UN-A36 | 36 | 6.5 | 12 | 9 | 90° | 29 |
| UN-A42 | 42 | 6.5 | 12 | 9 | 90° | 37 |
| UN-A48 | 48 | 8.5 | 16 | 11.5 | 90° | 68 |
| UN-A60 | 60 | 8.5 | 16 | 15 | 90° | 112 |
| UN-A75 | 75 | 10.5 | 20 | 18 | 90° | 162 |
| UN-A90 | 90 | 10.5 | 20 | 18 | 90° | 300 |
| UN-A120 | 120 | 12.5 | 20.5 | 18 | 90° | 600 |
UNMAG Pot Neodymium Magnet: The Best Choice for Professional Applications. UNMAG Pot Neodymium Magnet, also known as Neodymium Pot Magnet, is a powerful permanent magnet made of Neodymium material. It is widely used in professional applications due to its high strength, superior durability and unique magnetic properties.
It is available in different grades, such as N35-N52, and different magnetic directions, such as Thickness, Axial, etc. The highly corrosion-resistant Nickel coating makes it ideal for use in harsh environments.
Neodymium Pot Magnet with Axial Magnetization is a special type of Pot Neodymium Magnet, which is used in many professional applications. The axial magnetization gives it an even stronger magnetic force, allowing it to be used in a variety of industrial and commercial applications.
Neodymium Pot Magnets are an ideal solution for a variety of applications. Our Pot Neodymium Magnets are of the highest quality and have a range of unique features, including: Brand Name - UNMAG, Place of Origin - China, Tolerance - ±0.1mm, MOQ - 100 Pieces, Packaging - Carton Box, Material - Neodymium, Grade - N35-N52.
We package Pot Neodymium Magnet in sturdy, cardboard boxes and bubble wrap to ensure safe delivery. We ship Pot Neodymium Magnet with the best carriers to ensure your product reaches you in the best possible condition.
