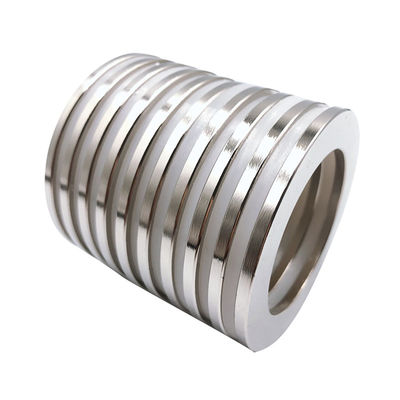

Most Powerful Rare Earth Magnets Large Diameter Ring Magnets Widely Used
| MOQ: | 100pcs |
| Price: | As negotiation |
| Standard Packaging: | cartons,pallets |
| Delivery Period: | 20-25days |
| Payment Method: | T/T L/C |
| Supply Capacity: | 100 tons per month for NdFeB magnet |
Most Powerful Rare Earth Magnets
,Rare Earth Magnets Large Diameter
,Powerful Large Diameter Ring Magnets
| Attribute | Value |
|---|---|
| Temperature Resistance | High |
| Corrosion Resistance | High |
| Magnetic Performance | Stable |
| Coating | Nickel |
| Application | Widely Used |
| Magnetic Field Strength | High |
| Material | Neodymium |
Sintered Neodymium Magnet is a kind of magnet made from Neodymium-Iron-Boron, a powerful Magnetic-Alloy-Compound. It is fabricated through a sintering process, which gives the magnet excellent Temperature-Resistance and high Magnetic-Flux-Density. It is available in various grades, from N35 to N52, making it widely used in a variety of applications. The strong magnetic properties of Sintered Neodymium Magnet makes it suitable for many applications, such as motors, sensors, and household appliances.
| Grade | Remanence | Coercivity | Intrinsic Coercivity | Max Energy Product | Working Temp | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (Br) | (HcB) | (HcJ) | (BH)max | Tw | KGs | T | KOe | KA/m | KOe | KA/m | MGOe | KJ/m³ | ℃ | |
| N Series | N35 | 11.7-12.2 | 1.17-1.22 | ≥10.9 | ≥868 | ≥12 | ≥955 | 33-36 | 263-287 | ≤80 | ||||
| N38 | 12.2-12.5 | 1.22-1.25 | ≥11.3 | ≥899 | ≥12 | ≥955 | 36-39 | 287-310 | ≤80 | |||||
- Product Name: Sintered Neodymium Magnet
- Magnetic Performance: Stable
- Size: Customized
- Corrosion Resistance: High
- Certification: ISO9001
- Pull Force: High
- High-Performance-Magnet
- Powder-Metallurgy-Magnet
| Properties | Description |
|---|---|
| Magnetic Field Strength | High |
| Corrosion Resistance | High |
| Application | Widely Used |
| Temperature Resistance | High |
| Material | Neodymium |
| Price | Reasonable |
| Grade | N35-N52 |
| Magnetic Performance | Stable |
| Coating | Nickel |
| Certification | ISO9001 |
UNMAG Sintered Neodymium Magnet is a type of high-performance magnet made of a magnetic alloy compound. It is widely used in various fields due to its high magnetic flux density and temperature resistance. It has a sintered shape and the grade is available in N35-N52.
This UNMAG Sintered Neodymium Magnet is made of neodymium iron boron, an alloy composed of rare earth elements. It has a strong magnetic power and is very durable. This product is mostly used in motors, sensors, computer hard drives, wind turbines, audio equipment and many other applications.
The sintered neodymium magnet is more expensive than other magnets, but its performance is much better. It has a wide range of applications in the automotive, aerospace, medical, industrial and consumer electronics industries.
UNMAG Sintered Neodymium Magnet is manufactured in China and is of high quality. It has excellent temperature resistance, making it an ideal choice for applications in extreme temperatures. Its high magnetic flux density makes it a powerful and reliable magnet for a variety of applications.
| Name | Dimension(mm) | Tolerance(mm) |
|---|---|---|
| Wall thickness | T≤10 | ±0.04 |
| 10<T≤30 | ±0.05 | |
| 30<T≤50 | ±0.06 |
Available size: L≤200mm, W≤100mm, T: 1.5~50mm, H3~60mm
- Brand Name: UNMAG
- Place of Origin: China
- Pull Force: High
- Magnetic Orientation: Axial, Multi-polar
- Size: Customized
- Shape: Sintered
- Certification: ISO9001
- Specialty: Powder-Metallurgy-Magnet, Sintered-Neo-Magnet, High-Performance-Magnet
Technical Support and Service for Sintered Neodymium Magnet
We are committed to providing our customers with the highest levels of quality and technical support. Our support team is available to assist you with any questions you may have regarding our sintered neodymium magnet products. We offer a variety of services, such as:
- Technical advice by phone or email
- On-site troubleshooting and assistance
- Testing and analysis of your magnet assemblies
- Custom design and fabrication of magnet assemblies
For more information on our technical support and services, please don't hesitate to contact us.
Sintered Neodymium Magnet products are packed in cardboard boxes for safe transportation. Foam padding is used to securely hold the products in the boxes. The boxes are then placed in shipping containers for safe delivery. The shipping containers are made of sturdy and durable materials to protect the products during transit.
