High Temperature Resistance Sintered Neodymium Magnet Multi Polar Magnetic
| MOQ: | 100pcs |
| Price: | As negotiation |
| Standard Packaging: | cartons,pallets |
| Delivery Period: | 20-25days |
| Payment Method: | T/T L/C |
| Supply Capacity: | 100 tons per month for NdFeB magnet |
Detail Information
Place of Origin
China
Brand Name
UNMAG
Magnetic Orientation:
Multi-polar
Temperature Resistance:
High
Grade:
N35-N52
Shape:
Any Size
Corrosion Resistance:
High
Coating:
Nickel
Magnetic Field Strength:
High
Magnetic Performance:
Stable
Highlight:
Temperature Resistance Sintered Neodymium Magnet
,Multi Polar Sintered Neodymium Magnet
Product Description

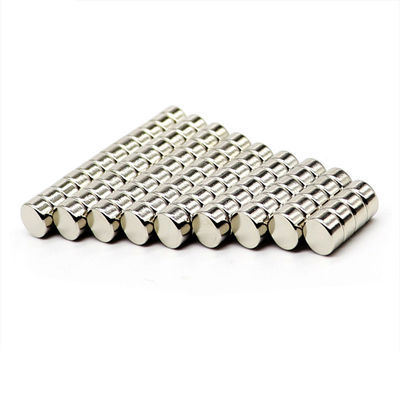

High Temperature Resistance Sintered Neodymium Magnet Multi Polar Magnetic
Key Attributes
| Magnetic Orientation | Multi-polar |
| Temperature Resistance | High |
| Grade | N35-N52 |
| Shape | Any size |
| Corrosion Resistance | High |
| Coating | Nickel |
| Magnetic Field Strength | High |
| Magnetic Performance | Stable |
Product Overview
Sintered Neodymium Magnet is a powerful alloy composed of neodymium, iron, and boron, offering exceptional magnetic field strength and durability. Available in grades N35-N52 and ISO9001 certified, these multi-polar magnets provide reliable performance in high-temperature environments across diverse applications.
Technical Specifications
| Parameter Name | Parameter Values | Unit |
|---|---|---|
| Curie Temperature | 310～380 | ℃ |
| Relative Recoil Permeability | 1.02～1.05 | |
| Reversible Temperature Coefficient of Br (20~100℃) | -0.09～-0.13 | %/℃ |
| Reversible Temperature Coefficient of Hcj (20~100℃) | -0.4～-0.7 | %/℃ |
| Density | 7.50～7.70 | g/cm3 |
| Vickers Hardness | 550～700 | |
| Bending Strength | -0.09～-0.13 | MPa |
| Tensile Strength | ≥80 | MPa |
| Compressive Strength | 800 ~1050 | MPa |
| Electric Resistivity | 150 | μΩ·cm |
| Thermal Conductivity | 8～10 | W/(M·℃) |
Applications
Our sintered neodymium magnets are ideal for demanding environments requiring high corrosion resistance and stable magnetic performance. Common applications include:
- Motors, generators, and transformers
- Marine and offshore equipment
- Medical and aerospace technology
- Computer hardware and sensors
- Automotive components
Customization Options
We offer tailored solutions to meet specific requirements, including custom shapes, sizes, and magnetic properties. Our powder-metallurgy process ensures consistent quality and performance for specialized applications.
Support & Services
Our technical team provides comprehensive support for product selection, installation, and maintenance. We offer custom design and manufacturing services to address unique application challenges.
Packaging & Shipping
Magnets are individually boxed and secured in cartons or wooden crates for protection during transit. Shipping options include sea and air freight, selected based on order requirements.
