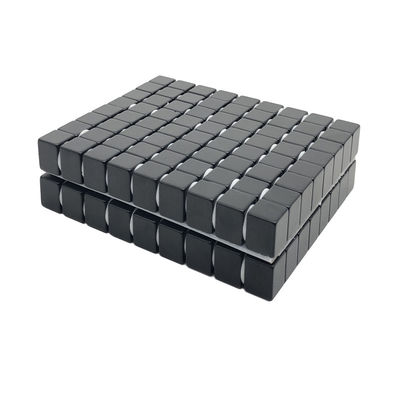

Epoxy Coating Sintered Neodymium Magnet For Industrial Applications
| MOQ: | 100pcs |
| Price: | As negotiation |
| Standard Packaging: | cartons,pallets |
| Delivery Period: | 20-25days |
| Payment Method: | T/T L/C |
| Supply Capacity: | 100 tons per month for NdFeB magnet |
Epoxy Coating Sintered Neodymium Magnet
,Industrial Sintered Neodymium Magnet
,Epoxy Coating sintered ndfeb magnets
| Attribute | Value |
|---|---|
| Magnetic Orientation | As Customization |
| Material | Neodymium Iron Boron |
| Coating | Nickel, NiCuNi, Zinc, Epoxy Etc |
| Grade | N35-N52, 35M-50M, 35H-48H, 30SH-45SH... |
| Working Temperature | 80~220°C |
| Shape | Block, Arc, Ring, Customized Shape Magnet |
| Application | New Energy Cars, Wind Power Generation, Servo Motors, Traction Motors |
Sintered Neodymium Magnet is a powerful permanent rare earth magnet made of an alloy of neodymium (Nd), iron (Fe) and boron (B). It is also sometimes referred to as NdFeB, NIB or Neo magnet. This type of magnet has the highest magnetic properties of all permanent magnets and is used in a wide variety of applications.
Sintered Neodymium Magnet is available in a variety of grades and can be coated with various materials to provide enhanced corrosion resistance. It can also be customized to have various shapes. The magnet has the ability to be magnetized in a variety of orientations, making it an ideal choice for applications that require a powerful, yet lightweight, magnetic solution.
- Product Name: Sintered Neodymium Magnet
- Shape: Block, Arc, Ring, Customized Shape Magnet
- Certification: ISO9001, IATF16949, ISO14001
- Coating: Nickel, NiCuNi, Zinc, Epoxy Etc
- Working Temperature: 80~220°C
- Magnetic Orientation: As Customization
- Neodymium Sintered Magnet
- Sintered Neodymium Magnet Block
- Sintered Neodymium Magnet Arc
- Sintered Neodymium Magnet Ring
- Sintered Neodymium Magnet Customized Shape
| Grade | Remanence | Coercivity | Intrinsic Coercivity | Max Energy Product | Working Temp | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| (Br) KGs | (Br) T | (HcB) KOe | (HcB) KA/m | (HcJ) KOe | (HcJ) KA/m | (BH)max MGOe | (BH)max KJ/m³ | |||
| N Series | ||||||||||
| N35 | 11.7-12.2 | 1.17-1.22 | ≥10.9 | ≥868 | ≥12 | ≥955 | 33-36 | 263-287 | ≤80 | |
| N38 | 12.2-12.5 | 1.22-1.25 | ≥11.3 | ≥899 | ≥12 | ≥955 | 36-39 | 287-310 | ≤80 | |
| Parameter | Details |
|---|---|
| Application | New Energy Cars, Wind Power Generation, Servo Motors, Traction Motors |
| Working Temperature | 80~220°C |
| Shape | Block, Arc, Ring, Customized Shape Magnet |
| Grade | N35-N52, 35M-50M, 35H-48H, 30SH-45SH... |
| Magnetic Orientation | As Customization |
| Material | Neodymium Iron Boron |
| Certification | ISO9001, IATF16949, ISO14001 |
| Coating | Nickel, NiCuNi, Zinc, Epoxy Etc |
UNMAG sintered neodymium magnet is made of neodymium iron boron material, with strong magnetic force, high coercive force, excellent temperature stability and corrosion resistance. It has a wide range of applications, including new energy cars, wind power generation, servo motors, traction motors, and can be customized to various shapes.
With ISO9001, IATF16949, ISO14001 certification, UNMAG sintered neodymium magnet has a working temperature range of 80°C ~ 220°C and a delivery time of 20-25 days. It is packaged in cartons and is widely used in different industries.
| Brand Name | UNMAG |
|---|---|
| Place of Origin | China |
| Packaging Details | Carton Box |
| Delivery Time | 20-25 days |
| Grade | N35-N52, 35M-50M, 35H-48H, 30SH-45SH... |
| Application | New Energy Cars, Wind Power Generation, Servo Motors, Traction Motors |
| Working Temperature | 80~220°C |
| Shape | Block, Arc, Ring, Customized Shape Magnet |
| Material | Neodymium Iron Boron |
The sintered neodymium magnet is packed in a sealed plastic bag. Then it is placed in a box with foam protection. The box is labeled with product information and sealed with tape to protect the product from damage during shipping.
The box is shipped by a reliable courier service. The service used depends on the size and weight of the package. The courier service will provide tracking information to ensure that the package is delivered on time.
