35M-50M 35H-48H Powerful Neodymium Bar Magnets Sintered High Strength
| MOQ: | 100pcs |
| Price: | As negotiation |
| Standard Packaging: | cartons,pallets |
| Delivery Period: | 20-25days |
| Payment Method: | T/T L/C |
| Supply Capacity: | 100 tons per month for NdFeB magnet |

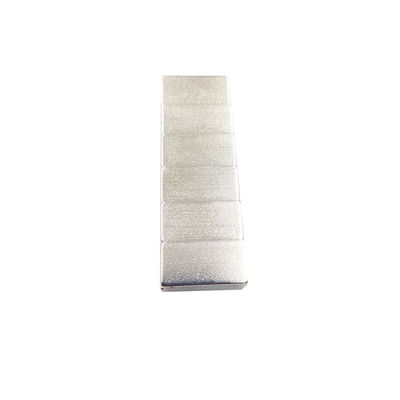

Powerful Neodymium Bar Magnets Sintered
,50M Neodymium Bar Magnets
,35M super strong bar magnets
| Attribute | Value |
|---|---|
| Working Temperature | 80~220°C |
| Magnetic Orientation | As Customization |
| Coating | Nickel, NiCuNi, Zinc, Epoxy Etc |
| Shape | Block, Arc, Ring, Customized Shape Magnet |
| Application | New Energy Cars, Wind Power Generation, Servo Motors, Traction Motors |
| Material | Neodymium Iron Boron |
| Grade | N35-N52, 35M-50M, 35H-48H, 30SH-45SH... |
Sintered Neodymium Magnets are a type of high performance, magnetic alloy compound made through powder metallurgy processes. They are the strongest type of permanent magnets available, offering an unbeatable combination of high coercivity and maximum energy product.
Characterized by their excellent coercivity, these powerful permanent magnets are available in various shapes, such as blocks, arcs, rings and customized shapes, as well as various grades like N35-N52, 35M-50M, 35H-48H, 30SH-45SH and more. The magnetic orientation can also be customized as desired. The Neodymium Magnets are further treated with coatings such as nickel, NiCuNi, zinc and epoxy to enhance their properties.
- Product Name: Sintered Neodymium Magnet
- Shape: Block, Arc, Ring, Customized Shape Magnet
- Material: Magnetic-Alloy-Compound Neodymium-Iron-Boron
- Working Temperature: 80~220°C
- Coating: Nickel, NiCuNi, Zinc, Epoxy Etc
- Certification: ISO9001, IATF16949, ISO14001
| Grade | Remanence | Coercivity | Intrinsic Coercivity | Max Energy Product | Working Temp | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| (Br) KGs | (Br) T | (HcB) KOe | (HcB) KA/m | (HcJ) KOe | (HcJ) KA/m | (BH)max MGOe | (BH)max KJ/m³ | |||
| N Series | ||||||||||
| N35 | 11.7-12.2 | 1.17-1.22 | ≥10.9 | ≥868 | ≥12 | ≥955 | 33-36 | 263-287 | ≤80 | |
| M Series | ||||||||||
| 35M | 11.7-12.2 | 1.17-1.22 | ≥10.9 | ≥868 | ≥14 | ≥1114 | 33-36 | 263-287 | ≤100 | |
| Property | Description |
|---|---|
| Application | New Energy Cars, Wind Power Generation, Servo Motors, Traction Motors |
| Material | Neodymium Iron Boron |
| Certification | ISO9001, IATF16949, ISO14001 |
| Coating | Nickel, NiCuNi, Zinc, Epoxy Etc |
| Magnetic Orientation | As Customization |
| Shape | Block, Arc, Ring, Customized Shape Magnet |
| Working Temperature | 80~220°C |
| Grade | N35-N52, 35M-50M, 35H-48H, 30SH-45SH... |
| Type | Magnetic-Alloy-Compound, Neodymium-Iron-Boron, Powder-Metallurgy-Magnet, Sintered-Neodymium-Magnet |
UNMAG Sintered Neodymium Magnet is made of Neodymium-Iron-Boron material, with a wide range of shapes from block, arc, ring to customized shape. With high working temperature of 80~220°C, UNMAG Sintered Neodymium Magnet is suitable for various applications such as New Energy Cars, Wind Power Generation, Servo Motors and Traction Motors. It also has strong magnetic orientation, making it perfect for many different uses.
- Brand Name: UNMAG
- Place of Origin: China
- Packaging Details: Carton Box
- Delivery Time: 20-25 days
For Packaging and Shipping of Sintered Neodymium Magnet, we use foam, plastic, and cardboard packages to protect the product from external damage. The packages are designed to withstand external impacts, such as rain and dust. All packages are labeled with the product name and our logo. The delivery time is usually 3-5 business days depending on the location.
