Custom Made D36 D80 NdFeB Pot Magnet A3 Steel Case With External Thread
  • name
  • name
  • name
  • name

Custom Made D36 D80 NdFeB Pot Magnet A3 Steel Case With External Thread

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 100 tons per month for NdFeB magnet
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
UNMAG
Matetrail:
A3 Steel Case+NdFeB Magnet
Max. Working Temperature:
80°C
Customization:
Custom-made Strength
Direction Of Magnetization:
Axial
Tolerance:
±0.1
Coating:
Nickel
Highlight:

Custom Made NdFeB Pot Magnet

,

External Thread NdFeB Pot Magnet

,

Custom Made neodymium mounting magnets

Product Description
Custom Made D36 D80 NdFeB Pot Magnet A3 Steel Case With External Thread
Product Specifications
Attribute Value
Material A3 Steel case + NdFeB magnet
Max. Working temperature 80°C
Customization Custom-made Strength
Direction of Magnetization Axial
Tolerance ±0.1
Coating Nickel
Product Description

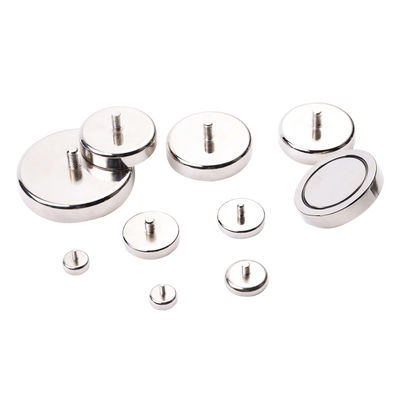

NdFeB Pot Magnet With External Thread

Custom Made D36 D80 NdFeB Pot Magnet A3 Steel Case With External Thread 0 Custom Made D36 D80 NdFeB Pot Magnet A3 Steel Case With External Thread 1
Technical Specifications
Model D (mm) M (mm) H (mm) h (mm) Strength (kg)
UN-C10 10 3 13 4 3
UN-C12 12 4 12 5 4
UN-C16 16 4 13 5 5.5
UN-C20 20 4 15 7 9
UN-C25 25 5 17 8 22
UN-C32 32 6 18 8 34
UN-C36 36 6 18 8 41
UN-C42 42 8 20 9 68
UN-C48 48 8 24 11.5 81
UN-C60 60 8 30 15 113
UN-C75 75 10 34 18 164
UN-C80 80 10 34 18 250
UN-C90 90 10 34 18 300
UN-C100 100 12 35 18 400
UN-C120 120 12 35 18 500
UN-C136 136 16 38 20 600

Note: The forces have been determined at room temperature on a plate in polished steel (Q235B) with a thickness of 10 mm (80mm/min). A maximum deviation of -10% compared to the specified value is possible in exceptional cases. Value is exceeded in general. Depending on the type of application (installation situation, temperatures, counter anchor etc.) the forces can be influenced enormously. The indicated values are serving as an orientation. Please consult our experts for specific application advice.
