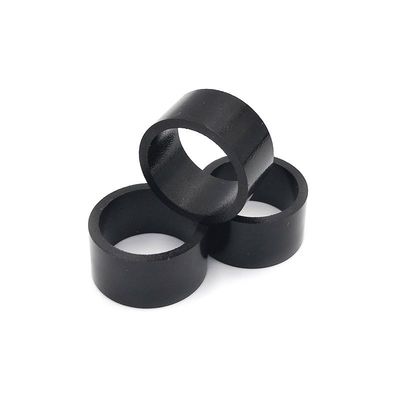

Multi Poles Bonded Neodymium Magnet Cylinder Moulding NdFeB OEM

MOQ:	100pcs
Price:	As negotiation
Standard Packaging:	cartons,pallets
Delivery Period:	20-25days
Payment Method:	T/T L/C
Supply Capacity:	100 tons per month for NdFeB magnet

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

UNMAG

Magnetization Direction:

Axial, Radial, Multi-poles

Shape:

Disc, Block, Cylinder, Ring, Etc.

Tolerance:

+/-0.05mm

Material:

NdFeB Alloy Powder

Coating:

Epoxy,Parylene

Application:

Spinder Motor,Stepping Motor,Synchronous Motor,DC Motor, Brushless Motor Etc

Pull Force:

Up To 20kg

MOQ:

100 Pieces

Highlight:

Multi Poles Bonded Neodymium Magnet

Bonded Neodymium Magnet Cylinder

Product Description

Multi Poles Bonded Neodymium Magnet Cylinder Moulding NdFeB OEM

Product Overview

Bonded Neodymium Magnet is a high-performance magnetic material composed of NdFeB powder, plastic, and additives. These precision-engineered magnets offer excellent magnetic properties with tight tolerances of ±0.05mm, making them ideal for demanding industrial applications.

Key Specifications

Magnetization Direction: Axial, Radial, Multi-poles

Available Shapes: Disc, Block, Cylinder, Ring

Tolerance: ±0.05mm

Material: NdFeB Alloy Powder

Coating Options: Epoxy, Parylene

Pull Force: Up to 20kg

Minimum Order Quantity: 100 Pieces

Applications

These bonded neodymium magnets are widely used in various motor applications including:

Spindle Motors
Stepping Motors
Synchronous Motors
DC Motors
Brushless Motors

Technical Specifications

Physical Properties

Parameter Name	Unit	Value
Density	g/cm³	4.0-6.5
Curie Temperature	℃	300-350
Recoil Permeability	μrec	1.2
Temperature Coefficient	%/℃	-0.17
Hardness	Hv	80-120
Resistivity	Ω.cm	0.026
Compressive Strength	kgf/mm²	3
Flexural Strength	kg/mm²	25
Thermal Expansivity	10-6/℃	1-2

Magnetic Characteristics

Grade	Unit	BN-2	BN-4	BN-6	BN-8L	BN-8	BN-8SR	BN-10	BN-10H	BN-12	BN-12L	BN-13L
Remanence(Br)	(mT)	300-400	400-500	500-600	600-650	630-680	620-680	680-730	700-750	720-770	760-810	780-830
Max. Energy Product(Hcb)	(KA/m)	240-320	240-320	320-400	360-440	400-480	400-480	400-480	440-520	440-520	400-480	400-480
Max. Energy Product(Hcj)	(KA/m)	480-640	560-720	560-720	640-800	640-800	880-1120	640-800	640-800	720-800	480-640	480-640
Max. Energy Product(BH max)	(KJ/m3)	24-32	32-44	52-60	60-68	68-76	68-76	76-84	80-88	88-96	88-96	88-104

Customization Options

Brand: UNMAG

Origin: China

Available Grades: BN-6, BN-8, BN-10, and more

We specialize in custom neodymium magnet solutions including:

Neodymium Magnet Rings
8-pole Bonded Arched NdFeB Magnets
Multi-pole Bonded NdFeB Magnets

Technical Support & Services

Our engineering team provides comprehensive support including:

Application-specific design consultation
Technical advice and troubleshooting
Installation and maintenance guidance
Comprehensive warranty program

Packaging & Shipping

All magnets are securely packaged using high-grade materials to prevent damage during transit. We ship worldwide via trusted carriers including FedEx, UPS, and USPS, offering competitive rates for both domestic and international orders.
