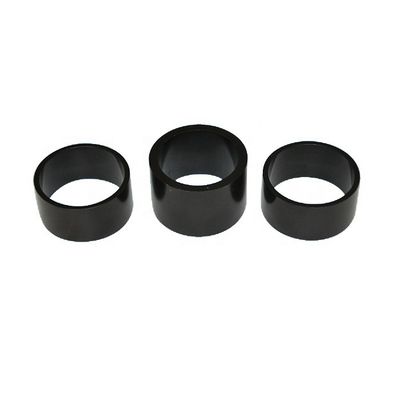

BN-8 Grade Bonded Neodymium Magnet OD60mm Size Thru Diametrical
  • name
  • name
  • name

BN-8 Grade Bonded Neodymium Magnet OD60mm Size Thru Diametrical

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 100 tons per month for NdFeB magnet
Detail Information
Product Description
Detail Information
Brand Name
UNMAG
Matetrail:
NdFeB
Size:
OD60*id40*10
Shape:
Ring
Direction Of Magnetization:
Thru Diametrical
Tolerance:
±0.1
Grade:
BN-8
Highlight:

BN-8 Grade Bonded Neodymium Magnet

,

60mm Bonded Neodymium Magnet

,

60mm Neodymium ring Magnet

Product Description
BN-8 Grade Bonded Neodymium Magnet OD60mm Size Thru Diametrical
Product Specifications
Attribute Value
Material NdFeB
Size OD60*id40*10
Shape Ring
Direction of Magnetization Thru Diametrical
Tolerance ±0.1
Grade BN-8
Custom-Made Bonded Neodymium Magnet

UNMAG understands that specialized projects often require unique magnet specifications. We manufacture bonded NdFeB magnets to exact customer requirements, with prototype or production quantities available within weeks. Our expert technicians provide confidential consultation to fully understand your application before manufacturing.

Design Considerations for Custom Magnets
  • Material Selection: Available in all grades of neodymium, samarium cobalt, ferrite, alnico, and flexible materials
  • Precision Dimensions: Exact specifications required, preferably with technical drawings
  • Pole Positioning: Options include axial, diametric, radial, or multi-pole magnetization
  • Protective Coatings: Wide range of protective coatings available
  • Quantity Requirements: Cost-effective production in large quantities, with small batch options
  • Lead Time: Production schedule adjusted to meet delivery requirements
Technical Parameters
Density g/cm³ 4.0-6.5
Curie Temperature ℃ 300-350
Recoil Permeability μrec 1.2
Temperature Coefficient %/℃ -0.17
Hardness Hv 80-120
Resistivity Ω.cm 0.026
Compressive Strength kgf/mm² 3
Flexural Strength kg/mm² 25
Thermal Expansivity 10-6/℃ 1-2
Manufacturing Process
  • Mixing
  • Melting and quenching
  • Coarse pulverization
  • Resin mixing
  • Forming
  • Hardening
  • Surface treatment (coating)
  • Magnetization
Bonded Magnet Applications
Typical Applications
  • Sensors
  • Brushless DC Motors
General Advantages
  • Isotropic materials magnetizable in any direction
  • Available in rings, discs, and rectangles
  • Multipole magnetizing fixtures for prototyping
  • Easy machining capabilities
  • Multipole rings simplify assembly
