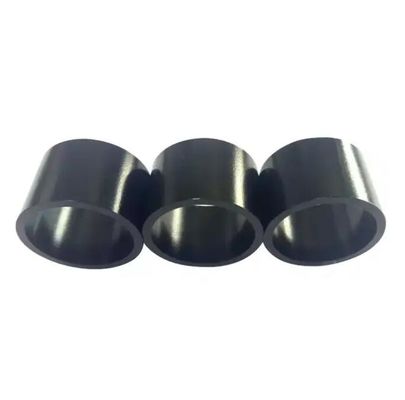

8 Poles Bonded Neodymium Magnet Rare Earth For Brushless Motor
  • name
  • name
  • name
  • name

8 Poles Bonded Neodymium Magnet Rare Earth For Brushless Motor

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 100 tons per month for NdFeB magnet
Detail Information
Product Description
Detail Information
Size:
Customized
Tolerance:
+/-0.05mm
Material:
NdFeB Alloy Powder
Grade:
BN-6,BN-8,BN-10..
Packaging:
Carton Box, Pallet, Etc.
Shape:
Disc, Block, Cylinder, Ring, Etc.
Product Name:
Bonded Neodymium Magnet
Application:
Spinder Motor,Stepping Motor,Synchronous Motor,DC Motor, Brushless Motor Etc
Highlight:

8 Poles Bonded Neodymium Magnet

,

Rare Earth Bonded Neodymium Magnet

,

8 Poles Rare Earth Neodymium Magnet

Product Description
8 Poles Bonded Neodymium Magnet Rare Earth For Brushless Motor
Product Specifications
Size: Customized
Tolerance: +/-0.05mm
Material: NdFeB Alloy Powder
Grade: BN-6, BN-8, BN-10...
Packaging: Carton Box, Pallet, Etc.
Shape: Disc, Block, Cylinder, Ring, Etc.
Applications: Spindle Motor, Stepping Motor, Synchronous Motor, DC Motor, Brushless Motor
Product Description

Our 8-pole bonded neodymium magnet features an arch-shaped design made from NdFeB alloy powder through injection bonding. This high-performance magnet offers customizable size and coating options (epoxy or parylene) and is carefully packaged for safe delivery.

Key Features:
  • Strong magnetic field suitable for high-temperature and corrosive environments
  • Highly resistant to demagnetization
  • Precision engineered for demanding applications
  • Cost-effective solution with reliable performance
  • Pull force up to 20kg
  • Available in multiple shapes: disc, block, cylinder, ring
Technical Specifications
Physical Properties
Parameter Unit Value
Density g/cm³ 4.0-6.5
Curie Temperature ℃ 300-350
Recoil Permeability μrec 1.2
Temperature Coefficient %/℃ -0.17
Hardness Hv 80-120
Resistivity Ω.cm 0.026
Magnetic Characteristics
Grade Remanence (Br) Coercivity (Hcb) Max Energy Product
BN-6 500-600 mT 320-400 KA/m 52-60 KJ/m³
BN-8 630-680 mT 400-480 KA/m 68-76 KJ/m³
BN-10 680-730 mT 400-480 KA/m 76-84 KJ/m³
Applications

Our bonded neodymium magnets are widely used in:

  • Electric motors (spindle, stepping, synchronous, DC, brushless)
  • Automotive systems
  • Aerospace components
  • Medical equipment
  • Consumer electronics
  • Industrial automation
  • Robotics
Customization Options

We specialize in custom bonded neodymium magnets tailored to your specific requirements:

Material: NdFeB Alloy Powder
Shapes: Arched, multi-pole rings, 8-pole configurations
Packaging: Carton Box, Pallet
Max Operating Temp: 120°C
Support & Services

Our experienced technical team provides:

  • Comprehensive technical support
  • Customized solutions
  • Installation guidance
  • Troubleshooting assistance
Packaging & Shipping

Magnets are securely packed in protective carton boxes or pallets to prevent damage during transit. We ensure proper magnetic shielding and labeling for safe shipping worldwide.
