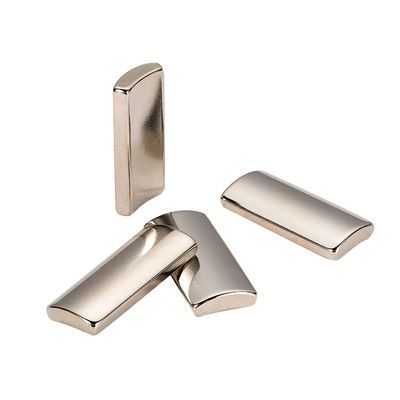

Customized Arc Neodymium Magnet N45 Neodymium Magnets Coated
  • name
  • name
  • name

Customized Arc Neodymium Magnet N45 Neodymium Magnets Coated

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 100 tons per month for NdFeB magnet
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
UNMAG
Certification
ISO9001, IATF16949, ISO14001
Material:
Neodymium Iron Boron
Working Temperature:
80~220°C
Grade:
N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
Magnetic Orientation:
As Customization
Coating:
Nickel,NiCuNi,Zinc,Epoxy Etc
Application:
New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors
Shape:
Block,Arc,Ring,Customized Shape Magnet
Highlight:

Arc Neodymium Magnet N45

,

Customized Arc Neodymium Magnet

,

N45 Neodymium Magnets Coated

Product Description
Customized Arc Neodymium Magnet N45 Neodymium Magnets Coated
Product Overview

ISO14001 certified sintered neodymium magnets made from neodymium iron boron alloy - the most powerful permanent magnet material available today. These high-performance magnets feature customizable magnetic orientation and are widely used in new energy vehicles, wind power generation, servo motors, and traction motors.

Key Specifications
Attribute Value
Material Neodymium Iron Boron
Working Temperature 80~220°C
Grade N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
Magnetic Orientation Customizable
Coating Nickel, NiCuNi, Zinc, Epoxy etc.
Shape Block, Arc, Ring, Customized
Physical Properties
Parameter Value Unit
Curie Temperature 310～380 ℃
Density 7.50～7.70 g/cm³
Compressive Strength 800 ~1050 MPa
Electric Resistivity 150 μΩ·cm
Thermal Conductivity 8～10 W/(M·℃)
Manufacturing Process
Step Description
Mixing Mix the ingredients
Melting Dissolve mixture at high temperature to prepare alloy
Fine Pulverization Turn alloy into fine powder
Molding Press powder with applied magnetic field
Sintering Heat treatment at 1,100℃ followed by 600℃ treatment
Processing Shape magnet base material into final product
Surface Treatment Apply rustproof coating
Magnetization Apply magnetic field to activate magnetism
Certifications & Quality

All our sintered neodymium magnets are certified to ISO9001, IATF16949, and ISO14001 standards. Manufactured with strict quality control for superior performance in demanding applications.

Customization Options

We offer complete customization of shape (block, arc, ring, or custom designs), grade (N35-N52 and specialty grades), coating (Nickel, NiCuNi, Zinc, Epoxy), and magnetic orientation to meet your specific requirements.

Packaging & Shipping

Magnets are securely packaged in protective cardboard boxes with proper labeling. We ensure safe storage and transportation in climate-controlled conditions to maintain product integrity. Standard delivery within 20-25 days with tracking provided.

Tags:

rare earth arc magnets,

arc shaped magnets,

arc magnets for motors
