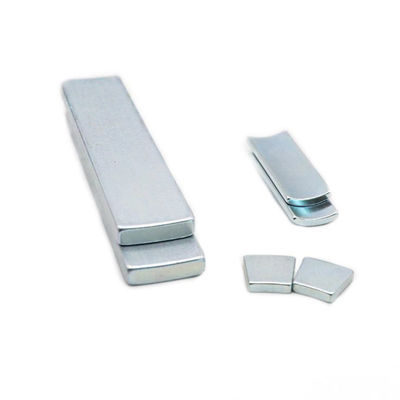

Customization NdFeB Neodymium Arc Magnets With Zinc Coating Multipurpose

MOQ:	100pcs
Price:	As negotiation
Standard Packaging:	cartons,pallets
Delivery Period:	20-25days
Payment Method:	T/T L/C
Supply Capacity:	100 tons per month for NdFeB magnet

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

UNMAG

Certification

ISO9001, IATF16949, ISO14001

Material:

Neodymium Iron Boron

Grade:

N35-N52, 35M-50M, 35H-48H, 30SH-45SH...

Application:

New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors

Working Temperature:

80~220°C

Shape:

Block,Arc,Ring,Customized Shape Magnet

Coating:

Nickel,NiCuNi,Zinc,Epoxy Etc

Magnetic Orientation:

As Customization

Highlight:

neodymium arc magnets Zinc Coating

rare earth arc magnets Zinc Coating

Customization neodymium arc magnets

Product Description

Customization NdFeB Neodymium Arc Magnets With Zinc Coating Multipurpose

Product Overview

High-performance sintered Neodymium-Iron-Boron (NdFeB) magnets with zinc coating, offering superior magnetic properties and customizable features for industrial applications. Working temperature range of 80-220°C with various grade options.

Key Specifications

Attribute	Value
Material	Neodymium Iron Boron
Grade	N35-N52, 35M-50M, 35H-48H, 30SH-45SH
Application	New Energy Cars, Wind Power Generation, Servo Motors, Traction Motors
Working Temperature	80~220°C
Shape	Block, Arc, Ring, Customized Shapes
Coating	Nickel, NiCuNi, Zinc, Epoxy
Magnetic Orientation	Customizable

Physical Properties

Parameter Name	Parameter Values	Unit
Curie Temperature	310～380	℃
Relative Recoil Permeability	1.02～1.05
Reversible Temperature Coefficient of Br (20~100℃)	-0.09～-0.13	%/℃
Reversible Temperature Coefficient of Hcj (20~100℃)	-0.4～-0.7	%/℃
Density	7.50～7.70	g/cm3
Vickers Hardness	550～700
Compressive Strength	800 ~1050	MPa

Manufacturing Process

Mix the ingredients

Dissolve the mixture at high temperature and prepare an alloy

Turn the alloy into fine powder

Apply magnetic field during pressing to align magnetization directions

Sinter at 1,100℃ followed by heat treatment at 600℃

Machine into final product shape

Apply rustproof surface treatment

Magnetize the product

Applications

Wind power generation systems

Electric vehicle motors

Servo and traction motors

DC motors and linear motors

Sensors and switches

Magnetic separation equipment

Certifications & Quality

ISO9001 certified

IATF16949 compliant

ISO14001 environmental standard

Customization Options

We offer fully customizable NdFeB magnets with options for:

Various shapes (blocks, arcs, rings, custom geometries)

Multiple coating types (Nickel, NiCuNi, Zinc, Epoxy)

Specific magnetic orientations

Tailored working temperature ranges

Standard delivery time: 20-25 days with carton box packaging.

Packaging & Shipping

Secure paper or plastic box packaging

Isolated from other metal materials

Shockproof packaging for transport

Clear product labeling

Secure tape or plastic strap closure
