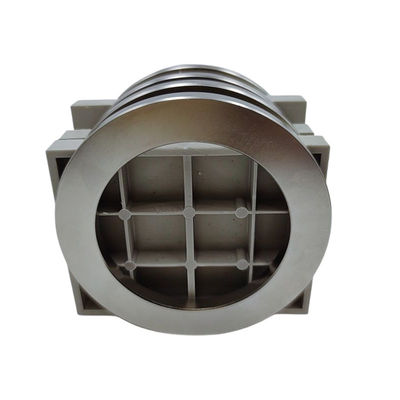

Iron Boron NdFeB Neodymium Magnets Ring Shaped Abrasion Resistance
  • name
  • name
  • name

Iron Boron NdFeB Neodymium Magnets Ring Shaped Abrasion Resistance

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 100 tons per month for NdFeB magnet
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
UNMAG
Certification
ISO9001, IATF16949, ISO14001
Coating:
Nickel,NiCuNi,Zinc,Epoxy Etc
Grade:
N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
Application:
New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors
Magnetic Orientation:
As Customization
Working Temperature:
80~220°C
Material:
Neodymium Iron Boron
Shape:
Block,Arc,Ring,Customized Shape Magnet
Highlight:

Abrasion Resistance NdFeB Neodymium Magnets

,

Iron Boron NdFeB Neodymium Magnets

,

neodymium boron magnets Abrasion Resistance

Product Description
Iron Boron NdFeB Neodymium Magnets Ring Shaped Abrasion Resistance
Product Overview

Sintered Neodymium Magnet is the world's most powerful permanent magnet made from neodymium iron boron (NdFeB). Our premium-grade magnets are ISO9001, IATF16949, and ISO14001 certified, offering exceptional performance for demanding industrial applications.

Key Specifications
Attribute Value
Coating Nickel, NiCuNi, Zinc, Epoxy Etc
Grade N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
Application New Energy Cars, Wind Power Generation, Servo Motors, Traction Motors
Magnetic Orientation Customizable
Working Temperature 80~220°C
Material Neodymium Iron Boron
Shape Block, Arc, Ring, Customized Shapes
Physical Properties
Parameter Name Parameter Values Unit
Curie Temperature 310～380 ℃
Density 7.50～7.70 g/cm3
Compressive Strength 800 ~1050 MPa
Electric Resistivity 150 μΩ·cm
Thermal Conductivity 8～10 W/(M·℃)
Manufacturing Process
  1. Mixing: Combine raw materials
  2. Melting: Dissolve mixture at high temperature
  3. Fine pulverization: Create alloy powder
  4. Molding in magnetic field: Align magnetization directions
  5. Sintering: Heat treatment at 1,100℃
  6. Processing: Shape final product
  7. Surface treatment: Rustproof coating
  8. Magnetization: Apply magnetic field
Coating Options
Material Properties Environment
Nickel-Copper-Nickel Light, stable, corrosion resistant Higher corrosive environments
Epoxy Insulating, lustrous finish Highly corrosive environments
Al+Epoxy Excellent corrosion resistance Hostile environments (650hr salt spray)
Customization & Ordering

Brand: UNMAG

Origin: China

Delivery: 20-25 days

Packaging: Carton box with desiccant

Shipping: Air, sea or express available

Applications
  • Electric vehicle motors
  • Wind turbine generators
  • Precision servo motors
  • Industrial traction systems
  • Medical equipment
  • Audio speakers
