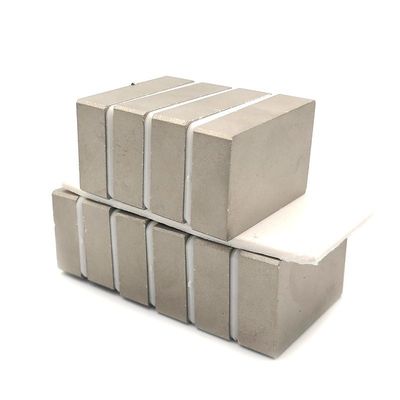

YXG-28H SmCo Samarium Cobalt Block Magnets For Free Energy Motor
| MOQ: | 100pcs |
| Price: | As negotiation |
| Standard Packaging: | cartons,pallets |
| Delivery Period: | 20-25days |
| Payment Method: | T/T L/C |
| Supply Capacity: | 20 tons per month for SmCo magnet |
YXG-28H smco block magnet
,Energy Motor Samarium Cobalt Magnet
,YXG-28H Samarium Cobalt Block Magnets
| Attribute | Value |
|---|---|
| Material | SmCo |
| Size | 50*20*10MM |
| Shape | Block |
| Direction of Magnetization | Thru thickness |
| Tolerance | ±0.1 |
| Grade | YXG-28H |
Samarium cobalt arc magnet is a customized samarium cobalt made by a powder metallurgical process. Manufactured using binders such as epoxy, samarium cobalt magnets are inherently very brittle. Users are discouraged from grinding material because dry remnants are a fire hazard.
Some advantages of using samarium cobalt include excellent temperature stability and corrosion resistance. Because of this, typically coating or plating is not required. Samarium cobalt is excellent for operating in harsh environments where it will be exposed to the elements as well as high operating temperatures.
They are commonly used in sensors or other devices where the magnet needs to operate in high temperatures.
| Parameter Name | Unit | SmCo5 | Sm2Co17 |
|---|---|---|---|
| Density | g/cm³ | 8.2 ~ 8.4 | 8.3 ~ 8.5 |
| Curie Temperature | ℃ | 700 ~ 750 | 800 ~ 850 |
| Max. Operating Temperature | ℃ | 250 | 350 |
| Temperature Coefficient Of Br | %/℃ | -0.05 | -0.03 |
| Vickers Hardness | HV | 450 ~ 500 | 550 ~600 |
| Electronic Resistivity | Ω.cm | 5 ~ 6 x 10(-5) | 8 ~ 9 x 10(-5) |
| Thermal Conductivity | W/mK | 12 | 13 |
| Step | Process | Description |
|---|---|---|
| 1 | Mixing | Mix the ingredients |
| 2 | Melting | Dissolve the mixture at high temperature and prepare an alloy |
| 3 | Fine pulverization | Turn the alloy into fine powder |
| 4 | Molding in a magnetic field | When pressing the fine powder, apply a magnetic field to it and prepare a molded product of powder with aligned directions of magnetization |
| 5 | Sintering and heat treatment | Sinter the product at about 1,200℃, and then subject it to heat treatment at about 1000℃ to increase its magnetic characteristics |
| 6 | Processing | Process the manufactured magnet base material and finish it into the product shape |
| 7 | Magnetization | Surface-treat it for rustproofing |
UNMAG Samarium Cobalt Magnets, made of SmCo material, are well known for their excellent corrosion resistance and high temperature resistance, up to 250-500°C. This makes them a perfect choice for:
- High temperature motors and generators
- Military applications
- Magnetic pump couplings
- Oil drilling applications
- Cryogenic applications
- Spaceflight
- National Defense
- Microwave
- Sensors
- Other demanding applications
UNMAG is a leading provider of samarium cobalt magnets, offering a wide range of products with different grades, such as YX-24H, YX-30H, YXG-28, YXG-30, and YXG-32. All our products are manufactured using the highest quality standards in China.
Our samarium cobalt magnets are carefully designed to provide superior performance and reliability. They offer excellent temperature stability, magnetic stability, and superior corrosion resistance, making them ideal for a variety of applications.
- Brand Name: UNMAG
- Place Of Origin: China
- Application: Spaceflight, National Defense, Microwave, Sensors
- Grade: YX-24H, YX-30H, YXG-28, YXG-30, YXG-32
- Magnetization: As Customized
- Operating Temperature: 250-500 °C
- Coating: As Customized
We provide high-performance Samarium Cobalt (Sm2Co17) and Samarium Cobalt Magnet with customizations per your requirements.
- 24/7 customer service and technical support
- Troubleshooting and problem solving
- Product installation and configuration
- Product maintenance and updates
- Warranty and replacement services
- Free software or hardware upgrades
- Samarium Cobalt Magnets are packaged in a sturdy cardboard box
- The box is lined with plastic wrap or bubble wrap to protect the product during shipping
- The box is sealed with packing tape to ensure the product is not damaged during shipping
- The package is labeled with the product name, quantity, and shipping address
- Samarium Cobalt Magnets are shipped via UPS, FedEx, or USPS
For detailed magnetic properties of SmCo Magnet, please click here.
For your different applications, we offer different grade/series for your choice.
UNMAG supplies SmCo magnets applied in various industrial applications. We have advanced technology, rich experience, and professional engineering technicians in this field.
