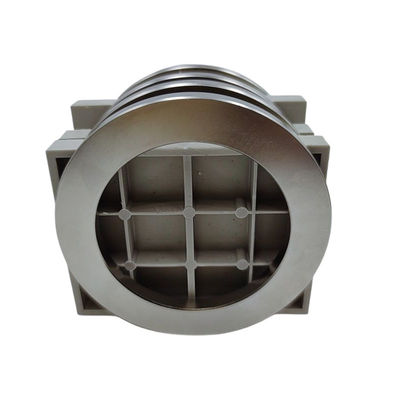

Iron Boron NdFeB Neodymium Magnets Ring Shaped Abrasion Resistance
| MOQ: | 100pcs |
| Price: | As negotiation |
| Standard Packaging: | cartons,pallets |
| Delivery Period: | 20-25days |
| Payment Method: | T/T L/C |
| Supply Capacity: | 100 tons per month for NdFeB magnet |
Abrasion Resistance NdFeB Neodymium Magnets
,Iron Boron NdFeB Neodymium Magnets
,neodymium boron magnets Abrasion Resistance
| Attribute | Value |
|---|---|
| Coating | Nickel, NiCuNi, Zinc, Epoxy Etc |
| Grade | N35-N52, 35M-50M, 35H-48H, 30SH-45SH... |
| Application | New Energy Cars, Wind Power Generation, Servo Motors, Traction Motors |
| Magnetic Orientation | As Customization |
| Working Temperature | 80~220°C |
| Material | Neodymium Iron Boron |
| Shape | Block, Arc, Ring, Customized Shape Magnet |
Sintered Neodymium Magnet is a type of permanent magnet made from neodymium iron boron (NdFeB). It is the most powerful permanent magnet in the world and is used in a variety of applications including speakers, motors, medical equipment, and sensors. Our sintered neodymium magnets are manufactured with the highest quality materials and certified with ISO9001, IATF16949, and ISO14001 standards.
We offer a wide range of N50 neodymium magnets in various sizes and shapes, with coatings such as nickel, nickel-copper-nickel, zinc, and epoxy. Our products are also customizable with magnetic orientation and working temperature ranging from 80°C to 220°C. With the highest grade of sintered neodymium magnet, you can trust that your applications will perform reliably and efficiently.
- Product Name: Sintered Neodymium Magnet
- Coating: Nickel, NiCuNi, Zinc, Epoxy Etc
- Certification: ISO9001, IATF16949, ISO14001
- Grade: N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
- Shape: Block, Arc, Ring, Customized Shape Magnet
- Magnetic Orientation: As Customization
- Material: Neodymium Iron Boron Magnet
| Parameter Name | Parameter Values | Unit |
|---|---|---|
| Curie Temperature | 310～380 | ℃ |
| Relative Recoil Permeability | 1.02～1.05 | |
| Reversible Temperature Coefficient of Br (20~100℃) | -0.09～-0.13 | %/℃ |
| Reversible Temperature Coefficient of Hcj (20~100℃) | -0.4～-0.7 | %/℃ |
| Density | 7.50～7.70 | g/cm3 |
| Vickers Hardness | 550～700 | |
| Bending Strength | -0.09～-0.13 | MPa |
| Tensile Strength | ≥80 | MPa |
| Compressive Strength | 800 ~1050 | MPa |
| Electric Resistivity | 150 | μΩ*cm |
| Thermal Conductivity | 8～10 | W/(M*℃) |
| Coefficient of Thermal Expansion (Parallel to the orientation) | 5 | 10-6/K |
| Coefficient of Thermal Expansion (vertical to the orientation) | -1.5 | 10-6/K |
| Young's Modulus | 150～200 | GPa |
| Specific Heat(20℃～320℃) | 3.0～4.6 | J/(g*k) |
| weight loss(low weight loss products) | ≤2 | mg/cm2 |
| Properties | Details |
|---|---|
| Certification | ISO9001, IATF16949, ISO14001 |
| Working Temperature | 80~220°C |
| Application | New Energy Cars, Wind Power Generation, Servo Motors, Traction Motors |
| Grade | N35-N52, 35M-50M, 35H-48H, 30SH-45SH... |
| Coating | Nickel, NiCuNi, Zinc, Epoxy Etc |
| Material | Neodymium Iron Boron |
| Shape | Block, Arc, Ring, Customized Shape Magnet |
| Magnetic Orientation | As Customization |
| Mixing | 1. Mix the ingredients. |
| Melting | 2. Dissolve the mixture at high temperature and prepare an alloy. |
| Fine pulverization | 3. Turn the alloy into fine powder. |
| Molding in a magnetic field | 4. When pressing the fine powder, apply a magnetic field to it and prepare a molded product of powder with aligned directions of magnetization. |
| Sintering and heat treatment | 5. Sinter the product at about 1,100℃, and then subject it to heat treatment at about 600℃ to increase its magnetic characteristics. |
| Processing | 6. Process the manufactured magnet base material and finish it into the product shape. |
| Surface treatment | 7. Subject the product to surface treatment in order to make it rustproof. |
| Magnetization | 8. Apply a magnetic field to give the magnet magnetism. |
UNMAG Sintered Neodymium-Iron-Boron Magnet is made in China and packaged in Carton Box. It is an ideal choice for a wide range of applications, such as New Energy Cars, Wind Power Generation, Servo Motors, Traction Motors etc. It has a working temperature range of 80~220°C and can be manufactured in a variety of shapes, such as Block, Arc, Ring, customized shape magnet. The coating options include Nickel, NiCuNi, Zinc, Epoxy etc. The delivery time is 20-25days and the magnetic orientation can be customized.
| Name | Dimension(mm) | Tolerance(mm) |
|---|---|---|
| Wall thickness | T≤10 | ±0.04 |
| 10<T≤30 | ±0.05 | |
| 30<T≤50 | ±0.06 | |
| Length | L≤10 | ±0.04 |
| 10<L≤30 | ±0.05 | |
| 30<T≤50 | ±0.05 | |
| L>50 | ±0.08 | |
| Width | W>50 | ±0.05 |
| L>50 | W≥50 | ±0.08 |
Available size: L≤200mm, W≤100mm, T: 1.5~50mm, H3~60mm
| Coating Material | Colour | Properties | Environment of Application | Thickness of Coating layer |
|---|---|---|---|---|
| Zinc | Blue, Black and rainbow etc | Compact, Stable and Homogeneous | With reasonalbe capability of anticorrosion | 6um≤∮≤12 |
| Nickel-Copper-Nickel | White and black | Light and Stable | Suitable for higher corrosive environment | 15μm≤∮≤30pm |
| Phosphorization | Colorless or light gray | uniform thickness | short-term anticorrosion | - |
| Epoxy | Black and Gray | layer with certain luster, insurability | Suitable for higher corrosive environment | ≥15μm |
| Parylene | transparency | uniform thickness, density pinholes-free and insurability | Excellent capability of anticorrosion especially for small items | 0.1μm≤∮≤100pm |
| Ni+Cu+Epoxy | Black | Layer with certain luster | Excellent capability of anticorrosion. Suitable for hostile environment salt spray resistance>300hr | 10-30μm |
| Al+Epoxy | Black | Layer with certain luster | Excellent capability of anticorrosion. Suitable for hostile environment salt spray resistance>650hr Widely used in new energy auto magnets | 15-35μm |
- Brand Name: UNMAG
- Place of Origin: China
- Packaging Details: Carton Box
- Delivery Time: 20-25days
- Working Temperature: 80~220°C
- Material: Neodymium Iron Boron
- Application: New Energy Cars, Wind Power Generation, Servo Motors, Traction Motors
- Certification: ISO9001, IATF16949, ISO14001
- Grade: N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
- Keywords: N50 Neodymium Magnets, Neodymium Iron Boron Magnet, Permanent Neodymium Magnet
Packaging: The sintered neodymium magnets will be packed in a sealed bag or box with a desiccant, then put in a carton.
Shipping: We can ship the sintered neodymium magnets by air, sea or express.
