High Pull Force Stainless Steel Magnetic Hooks Neodymium Customized Size
| MOQ: | 100pcs |
| Price: | As negotiation |
| Standard Packaging: | cartons,pallets |
| Delivery Period: | 20-25days |
| Payment Method: | T/T L/C |
| Supply Capacity: | 100 tons per month for NdFeB magnet |
Detail Information
Shape:
Hook
Coating:
Nickel
Tolerance:
±0.1mm
Magnetization Direction:
Axial
Material:
Neodymium
Product Name:
Neodymium Hook Magnet
Max Operating Temp:
80°C
Pull Force:
High
Highlight:
Neodymium Stainless Steel Magnetic Hooks
,Customized Stainless Steel Magnetic Hooks
Product Description
High Pull Force Stainless Steel Magnetic Hooks Neodymium Customized Size
Product Overview
This Neodymium Hook Magnet features high-grade neodymium materials with axial magnetization direction and nickel coating for superior durability. With a high pull force and lightweight design, it's ideal for industrial applications, hanging items, and crafts.
Key Specifications
| Attribute | Value |
|---|---|
| Shape | Hook |
| Coating | Nickel |
| Tolerance | ±0.1mm |
| Magnetization Direction | Axial |
| Material | Neodymium |
| Max Operating Temp | 80°C |
| Pull Force | High |

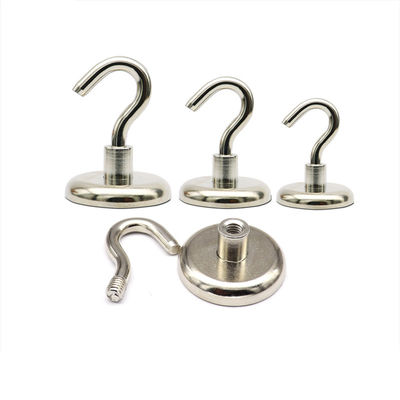

Product Image
Technical Parameters
| Model | D (mm) | D1 (mm) | M (mm) | H (mm) | h (mm) | Strength (kg) |
|---|---|---|---|---|---|---|
| UN-E10 | 10 | 6 | 3 | 12 | 4 | 3 |
| UN-E12 | 12 | 6 | 4 | 12 | 5 | 4 |
| UN-E16 | 16 | 6 | 4 | 13 | 5 | 5.5 |
| UN-E20 | 20 | 8 | 4 | 15 | 7 | 9 |
| UN-E25 | 25 | 10 | 5 | 17 | 8 | 22 |
| UN-E32 | 32 | 10 | 6 | 18 | 8 | 34 |
| UN-E36 | 36 | 10 | 6 | 18 | 8 | 41 |
| UN-E42 | 42 | 12 | 8 | 20 | 9 | 68 |
| UN-E48 | 48 | 12 | 8 | 24 | 11.5 | 81 |
| UN-E60 | 60 | 14 | 8 | 30 | 15 | 113 |
| UN-E75 | 75 | 16 | 10 | 34 | 18 | 164 |
Applications
The Neodymium Hook Magnet is perfect for:
- Hanging objects from metal surfaces
- Mounting objects to metal surfaces
- Industrial lifting and suspending applications
- Secure attachment of items to metal surfaces
- Craft projects requiring strong magnetic hold
Packaging & Shipping
The Neodymium Hook Magnet is securely packaged in a strong cardboard box to ensure safe delivery. It is shipped via reliable courier to the customer's chosen address.
