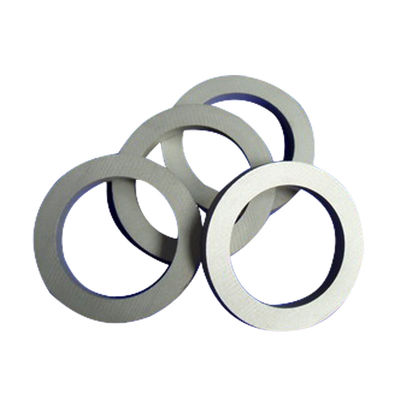

High Rigidity Smco Ring Magnet Uncoated Large Diameter Ring Magnets

MOQ:	100pcs
Price:	As negotiation
Standard Packaging:	cartons,pallets
Delivery Period:	20-25days
Payment Method:	T/T L/C
Supply Capacity:	20 tons per month for SmCo magnet

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

UNMAG

Operating Temperature:

250-500°C

Coating:

Uncoated

Magnetization:

Through Axial,Thickness Or Customized

Material:

Samarium Cobalt

Grade:

YXG-26H, YXG-30H, YXG-28, YXG-30, YXG-32

Application:

Spaceflight,National Defense,Microwave,Sensors

Highlight:

Smco Ring Magnet Large Diameter

Uncoated Large Diameter Ring Magnets

High Rigidity Smco Ring Magnet

Product Description

High Rigidity SmCo Ring Magnet - Uncoated Large Diameter Ring Magnets

Product Overview

Samarium Cobalt (SmCo) ring magnets are high-performance rare earth magnets featuring exceptional temperature stability, high resistance to demagnetization, and superior energy product. These uncoated large diameter ring magnets are ideal for demanding applications in aerospace, defense, and industrial sectors.

Key Specifications

Operating Temperature	250-500°C
Coating	Uncoated
Magnetization	Through Axial, Thickness or Customized
Material	Samarium Cobalt (Sm2Co17)
Available Grades	YXG-26H, YXG-30H, YXG-28, YXG-30, YXG-32
Primary Applications	Spaceflight, National Defense, Microwave Systems, Sensors

Technical Advantages

High resistance to demagnetization
Excellent temperature stability (up to 500°C)
Superior energy product for maximum magnetic performance
Available in multiple grades to suit specific application requirements
Customizable magnetization options

Magnetic Properties

Grade	Remanence (Br)	Coercivity (Hcb)	Intrinsic Coercivity (Hcj)	Max Energy Product (BH)max	Curie Temperature (TC)	Max Work Temp (TW)
YXG-26H	1.02-1.05 T	748-796 kA/m	≥1990 kA/m	24-26 MGOe	800°C	350°C
YXG-30H	1.08-1.10 T	788-835 kA/m	≥1990 kA/m	28-30 MGOe	800°C	350°C
YXG-32H	1.10-1.13 T	812-860 kA/m	≥1990 kA/m	29-32 MGOe	800°C	350°C

Physical Properties

Parameter	Unit	Sm2Co17
Density	g/cm³	8.3 ~ 8.5
Curie Temperature	℃	800 ~ 850
Vickers Hardness	HV	550 ~600
Electronic Resistivity	Ω.cm	8 ~ 9 x 10(-5)
Thermal Conductivity	W/mK	13

Customization Options

Brand: UNMAG

Origin: China

Delivery Time: 25-30 days

Customization Available: Various grades, magnetization directions, and dimensions

Packaging & Shipping

All SmCo ring magnets are securely packaged in sealed plastic/metal containers with proper labeling. Shipments include tracking numbers and are handled by reliable carriers with insurance coverage to ensure safe delivery.
