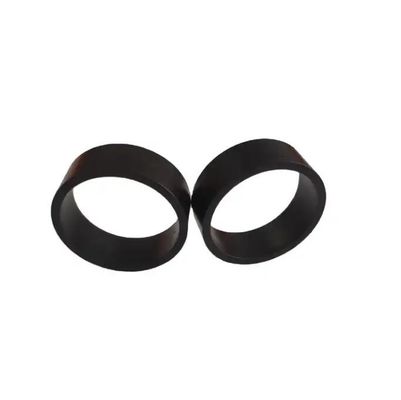

Grade BN-10 12 Pole Radial Multi Pole Ring Magnet Disc Shape
  • name
  • name
  • name
  • name

Grade BN-10 12 Pole Radial Multi Pole Ring Magnet Disc Shape

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 100 tons per month for NdFeB magnet
Detail Information
Product Description
Detail Information
Coating:
Epoxy,Parylene
Application:
Spinder Motor,Stepping Motor,Synchronous Motor,DC Motor, Brushless Motor Etc
Packaging:
Carton Box, Pallet, Etc.
Shape:
Disc, Block, Cylinder, Ring, Etc.
Size:
Customized
Tolerance:
+/-0.05mm
Product Name:
Bonded Neodymium Magnet
Grade:
BN-6,BN-8,BN-10..
Highlight:

Radial Multi Pole Ring Magnet

,

BN-10 Multi Pole Ring Magnet

,

BN-10 12 Pole Magnet

Product Description
Grade BN-10 12 Pole Radial Multi Pole Ring Magnet Disc Shape
Product Specifications
Attribute Value
Coating Epoxy, Parylene
Application Spinder Motor, Stepping Motor, Synchronous Motor, DC Motor, Brushless Motor
Packaging Carton Box, Pallet
Shape Disc, Block, Cylinder, Ring
Size Customized
Tolerance ±0.05mm
Product Name Bonded Neodymium Magnet
Grade BN-6, BN-8, BN-10
Product Overview

Bonded Neodymium Magnets are made from a combination of neodymium, iron, and boron. This strong magnetic material is widely used in motors, speakers, sensors and other applications due to its strong magnetic field and cost-effectiveness.

Available in various grades (BN-6, BN-8, BN-10) with magnetization options including axial, radial, and multi-pole directions. Features ±0.05mm tolerance for precision applications in motor systems and coated with epoxy or parylene for enhanced corrosion resistance.

Key Features
  • High magnetic energy product
  • Excellent corrosion resistance
  • Low temperature coefficient
  • Stable magnetic properties
  • Customizable shapes and sizes
  • Epoxy or Parylene coating options
  • Precision tolerance (±0.05mm)
Technical Parameters
Parameter Name Unit Value
Density g/cm³ 4.0-6.5
Curie Temperature ℃ 300-350
Recoil Permeability μrec 1.2
Temperature Coefficient %/℃ -0.17
Hardness Hv 80-120
Resistivity Ω.cm 0.026
Compressive Strength kgf/mm² 3
Flexural Strength kg/mm² 25
Thermal Expansivity 10-6/℃ 1-2
Applications

Ideal for various motor applications including:

  • Spinder motors
  • Stepping motors
  • Synchronous motors
  • DC motors
  • Brushless motors
  • Consumer electronics
  • Industrial equipment

With a maximum operating temperature of 120°C and minimum order quantity of 100 pieces, these bonded neodymium magnets offer a cost-effective solution for demanding applications requiring high performance and reliability.

Tags:

bonded ndfeb magnets,

ndfeb ring magnet,

radial neodymium magnets
