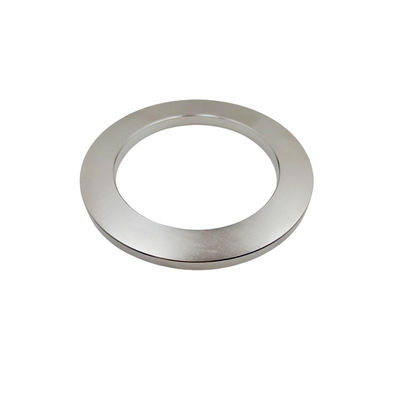

Sintered Rare Earth Ring Magnets Neodymium Round Magnets Grade 35M-50M

Products

Rubber Coated Magnet

sales@unmagnet.com

86-592-5130661

Contact Now

Sintered Rare Earth Ring Magnets Neodymium Round Magnets Grade 35M-50M

MOQ:	100pcs
Price:	As negotiation
Standard Packaging:	cartons,pallets
Delivery Period:	20-25days
Payment Method:	T/T L/C
Supply Capacity:	100 tons per month for NdFeB magnet

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

UNMAG

Certification

ISO9001, IATF16949, ISO14001

Material:

Neodymium Iron Boron

Coating:

Nickel,NiCuNi,Zinc,Epoxy Etc

Magnetic Orientation:

As Customization

Grade:

N35-N52, 35M-50M, 35H-48H, 30SH-45SH...

Working Temperature:

80~220°C

Application:

New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors

Shape:

Block,Arc,Ring,Customized Shape Magnet

Highlight:

Sintered Rare Earth Ring Magnets

Neodymium Round Magnets 50M

35M Rare Earth Ring Magnets

Product Description

Sintered Rare Earth Ring Magnets Neodymium Round Magnets Grade 35M-50M

Product Specifications

Attribute	Value
Material	Neodymium Iron Boron
Coating	Nickel, NiCuNi, Zinc, Epoxy Etc
Magnetic Orientation	As Customization
Grade	N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
Working Temperature	80~220°C
Application	New Energy Cars, Wind Power Generation, Servo Motors, Traction Motors
Shape	Block, Arc, Ring, Customized Shape Magnet

Product Overview

Sintered Neodymium Magnet is a high-performance permanent magnet made from rare earth metal neodymium, iron and boron. With superior magnetic properties, these magnets are ideal for demanding applications in new energy vehicles, wind power generation, servo motors, and traction motors.

All our Sintered Neodymium Magnets are certified with ISO9001, IATF16949 and ISO14001 standards, ensuring consistent quality and performance. Available with various coating options including Nickel, NiCuNi, Zinc, and Epoxy.

Key Features

High energy product and coercivity for superior magnetic performance
Excellent temperature stability (80~220°C operating range)
High corrosion resistance with multiple coating options
Exceptional resistance to demagnetization
Customizable magnetic orientation and shapes
Certified quality with ISO9001, IATF16949, and ISO14001

Magnetic Properties

Detailed Grade Specifications

Grade	Remanence		Coercivity		Intrinsic Coercivity		Max Energy Product		Working Temp
Grade	(Br) KGs	(Br) T	(HcB) KOe	(HcB) KA/m	(HcJ) KOe	(HcJ) KA/m	(BH)max MGOe	(BH)max KJ/m³	Working Temp
N35	11.7-12.2	1.17-1.22	≥10.9	≥868	≥12	≥955	33-36	263-287	≤80

Maximum Working Temperatures

Grade Series	Working Temperature
NSeries (N35~N52)	≤80°C
MSeries (38M~50M)	≤100°C
HSeries (35H~48H)	≤120°C
SHSeries (33SH~48SH)	≤150°C
UHSeries (30UH~40UH)	≤180°C
EHSeries (30EH~38EH)	≤200°C

Applications

Our sintered NdFeB magnets are widely used in industrial applications including:

New energy vehicle motors and components
Wind turbine generators
Servo motors and precision equipment
Traction motors for electric vehicles
High-speed motors and power tools
Various magnetic applications requiring high performance

Customization Options

UNMAG provides complete customization services for sintered neodymium magnets:

Custom shapes including blocks, arcs, rings, and complex geometries
Multiple coating options for different environmental requirements
Precision magnetic orientation tailored to application needs
Special grades for high temperature or demanding applications

Brand: UNMAG
Origin: China
Delivery: 20-25 days
Certifications: ISO9001, IATF16949, ISO14001

Packaging & Shipping

Our sintered neodymium magnets are carefully packaged to ensure safe delivery:

Vacuum-sealed in moisture-resistant bags to prevent oxidation
Shipped in robust cardboard boxes for maximum protection
Special packaging available upon request
