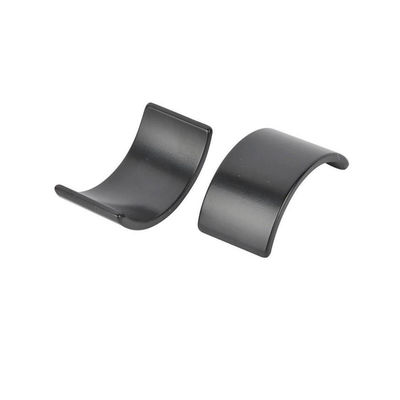

30SH-45SH Grade Industrial Neodymium Magnet With Epoxy Coating
  • name
  • name
  • name
  • name
  • name

30SH-45SH Grade Industrial Neodymium Magnet With Epoxy Coating

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 100 tons per month for NdFeB magnet
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
UNMAG
Certification
ISO9001, IATF16949, ISO14001
Magnetic Orientation:
As Customization
Material:
Neodymium Iron Boron
Grade:
N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
Coating:
Nickel,NiCuNi,Zinc,Epoxy Etc
Shape:
Block,Arc,Ring,Customized Shape Magnet
Working Temperature:
80~220°C
Application:
New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors
Highlight:

45SH Grade Industrial Neodymium Magnet

,

Industrial Neodymium Magnet Industrial Neodymium Magnet

Product Description
30SH-45SH Grade Industrial Neodymium Magnet With Epoxy Coating
Product Overview
Sintered Neodymium Magnet is a high-performance permanent magnet manufactured using powder metallurgy techniques. Made from Neodymium Iron Boron (NdFeB), these magnets are available in various grades (N35-N52, 35M-50M, 35H-48H, 30SH-45SH) and shapes including blocks, arcs, rings, and custom configurations. ISO9001, IATF16949, and ISO14001 certified for quality assurance.
Key Specifications
Attribute Value
Material Neodymium Iron Boron
Grade N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
Coating Options Nickel, NiCuNi, Zinc, Epoxy
Shapes Available Block, Arc, Ring, Customized
Working Temperature 80~220°C
Magnetic Orientation Customizable
Physical Properties
Parameter Value Unit
Curie Temperature 310～380 ℃
Density 7.50～7.70 g/cm³
Vickers Hardness 550～700
Tensile Strength ≥80 MPa
Compressive Strength 800～1050 MPa
Thermal Conductivity 8～10 W/(M·℃)
Tolerance Control
Dimension Range (mm) Tolerance (mm)
Wall Thickness T≤10 ±0.04
10<T≤30 ±0.05
30<T≤50 ±0.06
Length L≤10 ±0.04
10<L≤30 ±0.05
L>50 ±0.08
Applications
  • New Energy Vehicles
  • Wind Power Generation Systems
  • Servo Motors
  • Traction Motors
  • Industrial Automation Equipment
Customization & Production
Available in standard sizes up to L≤200mm, W≤100mm, with thickness ranging from 1.5~50mm. Custom shapes and specifications can be manufactured to meet specific application requirements.
Packaging & Shipping
Magnets are securely packaged in high-quality carton boxes with protective dividers to prevent movement during transit. Each shipment includes tracking information for delivery monitoring. Standard delivery time is 20-25 days.
Quality Assurance: All products are manufactured under strict quality control processes and certified to ISO9001, IATF16949, and ISO14001 standards.
