Epoxy Coated Custom NdFeB Neodymium Magnets For Traction Motors
  • name
  • name
  • name

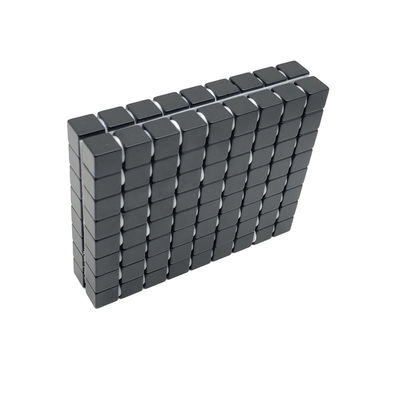

Epoxy Coated Custom NdFeB Neodymium Magnets For Traction Motors

MOQ: 100pcs
Price: As negotiation
Standard Packaging: cartons,pallets
Delivery Period: 20-25days
Payment Method: T/T L/C
Supply Capacity: 100 tons per month for NdFeB magnet
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
UNMAG
Shape:
Customized
Magnetic Flux Density:
High
Application:
New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors
Size:
Customized
Pull Force:
High
Magnetic Orientation:
Axial,Multi-polar,As Customization
Temperature Resistance:
High
Highlight:

Custom NdFeB Neodymium Magnets

,

Traction Motors Neodymium Magnets

,

Epoxy Coated custom neodymium magnets

Product Description
Epoxy Coated Custom NdFeB Neodymium Magnets For Traction Motors
Key Attributes
Shape
Customized
Magnetic Flux Density
High
Applications
New Energy Cars, Wind Power, Servo Motors
Size
Customized
Pull Force
High
Temperature Resistance
High
Product Overview

Sintered Neodymium Magnet (Neo Magnet) is a high-performance powder metallurgy magnet composed of neodymium, iron, and boron. Renowned for its exceptional magnetic strength, this magnet offers superior temperature and corrosion resistance, making it ideal for demanding industrial applications.

Available in customized shapes and sizes with various coating options (Nickel, Zinc, Epoxy), these magnets feature flexible magnetic orientation (Axial, Multi-polar) and maintain stable performance in high-temperature environments.

Technical Specifications
Parameter Value Unit
Material Neodymium-Iron-Boron
Curie Temperature 310～380 ℃
Density 7.50～7.70 g/cm³
Compressive Strength 800～1050 MPa
Electric Resistivity 150 μΩ·cm
Certification ISO 9001, IATF 16949, ISO14001
Manufacturing Process
  1. Mixing of raw materials
  2. High-temperature alloy preparation
  3. Fine powder pulverization
  4. Magnetic field molding
  5. Sintering at 1,100℃
  6. Heat treatment at 600℃
  7. Precision machining
  8. Surface treatment for rustproofing
  9. Final magnetization
Industrial Applications
New Energy Vehicles Wind Turbines Servo Motors Medical Equipment Aerospace Generators Magnetic Separators Actuators

These high-performance magnets are particularly suited for traction motors in electric vehicles and power generation systems where reliability under extreme conditions is critical.

Tolerance Control
Dimension Range (mm) Tolerance (mm)
Wall Thickness T≤10 ±0.04
10<T≤30 ±0.05
30<T≤50 ±0.06
Length L≤10 ±0.04
10<L≤30 ±0.05
L>50 ±0.08
Customization Options

Available in sizes up to L≤200mm, W≤100mm with thickness ranging from 1.5-50mm. Custom shapes, coatings (Nickel, Zinc, Epoxy), and magnetic orientations available to meet specific application requirements.

Technical Support

Our expert team provides comprehensive support including product specification guidance, installation assistance, and troubleshooting. We are committed to delivering exceptional service for all our sintered neodymium magnet products.

Tags:

Industrial Rare Earth Magnets,

neodymium rare earth magnets,

neodymium disc magnets
