Nickel Coated Industrial Strength Magnetic Hooks Custom Made Antirust
| MOQ: | 100pcs |
| Price: | As negotiation |
| Standard Packaging: | cartons,pallets |
| Delivery Period: | 20-25days |
| Payment Method: | T/T L/C |
| Supply Capacity: | 100 tons per month for NdFeB magnet |
Detail Information
Place of Origin
China
Brand Name
UNMAG
Matetrail:
A3 Steel Case+NdFeB Magnet
Max. Working Temperature:
80°C
Customization:
Custom-made Strength
Direction Of Magnetization:
Axial
Tolerance:
±0.1
Coating:
Nickel
Highlight:
Industrial Strength Magnetic Hooks
,Antirust Industrial Magnetic Hooks
,Nickel Coated Industrial Industrial Magnetic Hooks
Product Description
Nickel Coated Industrial Strength Magnetic Hooks Custom Made Antirust
Product Attributes
| Material | A3 Steel case + NdFeB magnet |
|---|---|
| Max. Working Temperature | 80°C |
| Customization | Custom-made Strength |
| Direction of Magnetization | Axial |
| Tolerance | ±0.1 |
| Coating | Nickel |

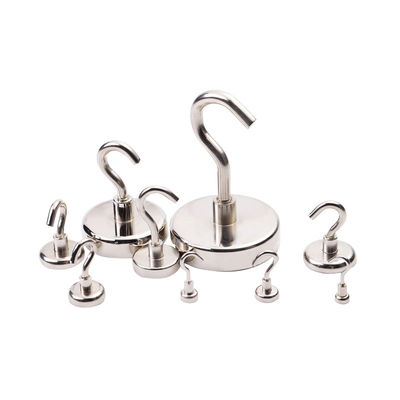

NdFeB Pot Magnet With Hook
Material: A3 Steel case + NdFeB magnet + PVC ring/Epoxy glue
Coating: Nickel
Magnetization direction: Axial
Max. Working temperature: 80°C
Customization: Custom-made Strength
A type neodymium magnetic hook is equipped with a hook on the iron shell, which can attract the magnetic hook sucker to the iron interface for lifting objects.
Model: NdFeB Pot Magnet With Hook
| Model | D (mm) | D1 (mm) | M (mm) | H (mm) | h (mm) | Strength (kg) |
|---|---|---|---|---|---|---|
| UN-E10 | 10 | 6 | 3 | 12 | 4 | 3 |
| UN-E12 | 12 | 6 | 4 | 12 | 5 | 4 |
| UN-E16 | 16 | 6 | 4 | 13 | 5 | 5.5 |
| UN-E20 | 20 | 8 | 4 | 15 | 7 | 9 |
| UN-E25 | 25 | 10 | 5 | 17 | 8 | 22 |
| UN-E32 | 32 | 10 | 6 | 18 | 8 | 34 |
| UN-E36 | 36 | 10 | 6 | 18 | 8 | 41 |
| UN-E42 | 42 | 12 | 8 | 20 | 9 | 68 |
| UN-E48 | 48 | 12 | 8 | 24 | 11.5 | 81 |
| UN-E60 | 60 | 14 | 8 | 30 | 15 | 113 |
| UN-E75 | 75 | 16 | 10 | 34 | 18 | 164 |
The forces have been determined at room temperature on a plate in polished steel (Q235B) with a thickness of 10 mm (80mm/min). A maximum deviation of -10% compared to the specified value is possible in exceptional cases. Value is exceeded in general. Depending on the type of application (installation situation, temperatures, counter anchor etc.) the forces can be influenced enormously. The indicated values are serving as an orientation. Please get advice and help from our experts.
