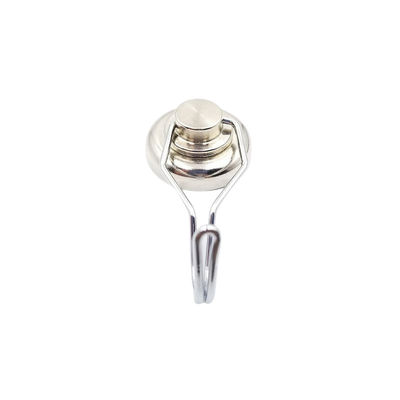

Customized Permanent Neodymium Hook Magnet Welding Processing
| MOQ: | 100pcs |
| Price: | As negotiation |
| Standard Packaging: | cartons,pallets |
| Delivery Period: | 20-25days |
| Payment Method: | T/T L/C |
| Supply Capacity: | 100 tons per month for NdFeB magnet |
Detail Information
Place of Origin
China
Brand Name
UNMAG
Shape:
Hook
Product Name:
Neodymium Hook Magnet
Tolerance:
±0.1mm
Max Operating Temp:
80°C
Pull Force:
High
Coating:
Nickel
Magnetization Direction:
Axial
Material:
Neodymium
Highlight:
Permanent Neodymium Hook Magnet
,Customized Neodymium Hook Magnet
Product Description
Customized Permanent Neodymium Hook Magnet Welding Processing
Product Specifications
| Attribute | Value |
|---|---|
| Shape | Hook |
| Product Name | Neodymium Hook Magnet |
| Tolerance | ±0.1mm |
| Max Operating Temp | 80°C |
| Pull Force | High |
| Coating | Nickel |
| Magnetization Direction | Axial |
| Material | Neodymium |
Product Overview
The Neodymium Hook Magnet is a powerful and versatile magnetic solution featuring a hook shape designed for secure latching. Manufactured from rare-earth neodymium with nickel coating, it offers high pull force (±0.1mm tolerance) and withstands temperatures up to 80°C.
Ideal for industrial, commercial, and consumer applications requiring secure holding force - perfect for attaching, holding, latching, and retrieving items efficiently.
Technical Parameters
| Model | D(mm) | A(mm) | B(mm) | C(mm) | H(mm) | L(mm) | Vertical Suction(kg) | Horizontal Suction(kg) |
|---|---|---|---|---|---|---|---|---|
| UN-X25 | 25 | 17 | 13.5 | 22 | 14.5 | 52 | 16 | 2 |
| UN-X32 | 32 | 17 | 13.5 | 25 | 14.5 | 54 | 30 | 3 |
| UN-X36 | 36 | 20 | 13.5 | 25 | 15.5 | 54 | 41 | 5 |
| UN-X42 | 42 | 30 | 13.5 | 25 | 15.5 | 54 | 60 | 8 |
Applications
This secure-holding neodymium hook magnet is suitable for diverse applications including:
- Industrial equipment and machinery
- Commercial displays and fixtures
- Construction site applications
- Household organization solutions
- Retrieval and fastening operations
Customization & Manufacturing
Manufactured in China using premium-grade neodymium, our hook magnets offer reliable performance with strong holding force at competitive pricing. Custom specifications available upon request.
Packaging & Shipping
Each magnet is securely packed in protective cardboard with bubble wrap. Standard shipments via UPS include tracking, with freight options available for large orders.
