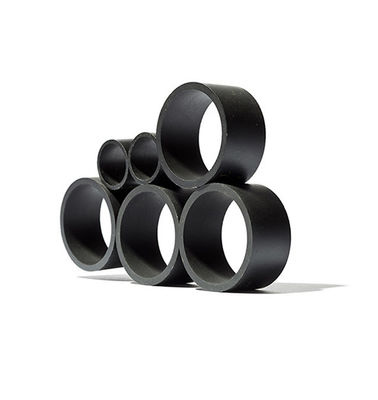

BN-10 Bonded Neodymium Magnet Ndfeb Ring Magnet Made Of NdFeB Alloy Powder
| MOQ: | 100pcs |
| Price: | As negotiation |
| Standard Packaging: | cartons,pallets |
| Delivery Period: | 20-25days |
| Payment Method: | T/T L/C |
| Supply Capacity: | 100 tons per month for NdFeB magnet |
Detail Information
Place of Origin
China
Brand Name
UNMAG
Packaging:
Carton Box, Pallet, Etc.
Material:
NdFeB Alloy Powder
Product Name:
Bonded Neodymium Magnet
Max Operating Temperature:
120°C
Shape:
Disc, Block, Cylinder, Ring, Etc.
Pull Force:
Up To 20kg
Magnetization Direction:
Axial, Radial, Multi-poles
Application:
Spinder Motor,Stepping Motor,Synchronous Motor,DC Motor, Brushless Motor Etc
Highlight:
BN-10 Bonded Neodymium Magnet
,NdFeB Alloy Powder Ring Magnet
,BN-10 ndfeb ring magnet
Product Description
BN-10 Bonded Neodymium Magnet Ndfeb Ring Magnet Made Of NdFeB Alloy Powder
Product Overview
The BN-10 Bonded Neodymium Magnet is a high-performance magnet manufactured from NdFeB alloy powder, offering exceptional magnetic strength with a pull force up to 20kg. Designed for demanding applications, it maintains stability at temperatures up to 120°C.
Key Specifications
Material
NdFeB Alloy Powder
Max Operating Temperature
120°C
Pull Force
Up To 20kg
Magnetization Direction
Axial, Radial, Multi-poles
Available Shapes
Disc, Block, Cylinder, Ring
Packaging Options
Carton Box, Pallet
Applications
- Spindle Motors
- Stepping Motors
- Synchronous Motors
- DC Motors
- Brushless Motors
- Robotics
- Automotive Systems
- Aerospace Components
- Medical Devices
- Consumer Electronics
Physical Properties
| Parameter Name | Unit | Value |
|---|---|---|
| Density | g/cm³ | 4.0-6.5 |
| Curie Temperature | ℃ | 300-350 |
| Recoil Permeability | μrec | 1.2 |
| Temperature Coefficient | %/℃ | -0.17 |
| Hardness | Hv | 80-120 |
| Resistivity | Ω.cm | 0.026 |
| Compressive Strength | kgf/mm² | 3 |
| Flexural Strength | kg/mm² | 25 |
| Thermal Expansivity | 10-6/℃ | 1-2 |
Magnetic Characteristics
The BN-10 grade offers superior magnetic performance with the following specifications:
| Grade | Remanence (Br) | Coercivity (Hcb) | Max Energy Product (BH max) |
|---|---|---|---|
| BN-10 | 680-730 mT | 400-480 KA/m | 76-84 KJ/m³ |
Customization Options
Brand
UNMAG
Origin
China
MOQ
100 Pieces
Coating
Epoxy, Parylene
We specialize in custom bonded neodymium magnets including 8-pole ring configurations, tailored to your specific requirements.
Technical Support
Our expert technicians provide comprehensive support for all bonded neodymium magnet applications, including troubleshooting, maintenance guidance, and performance optimization.
Packaging & Shipping
All magnets are securely packaged in protective carton boxes or pallets, with shipping costs calculated based on weight and destination. We partner with reliable couriers to ensure safe delivery.
